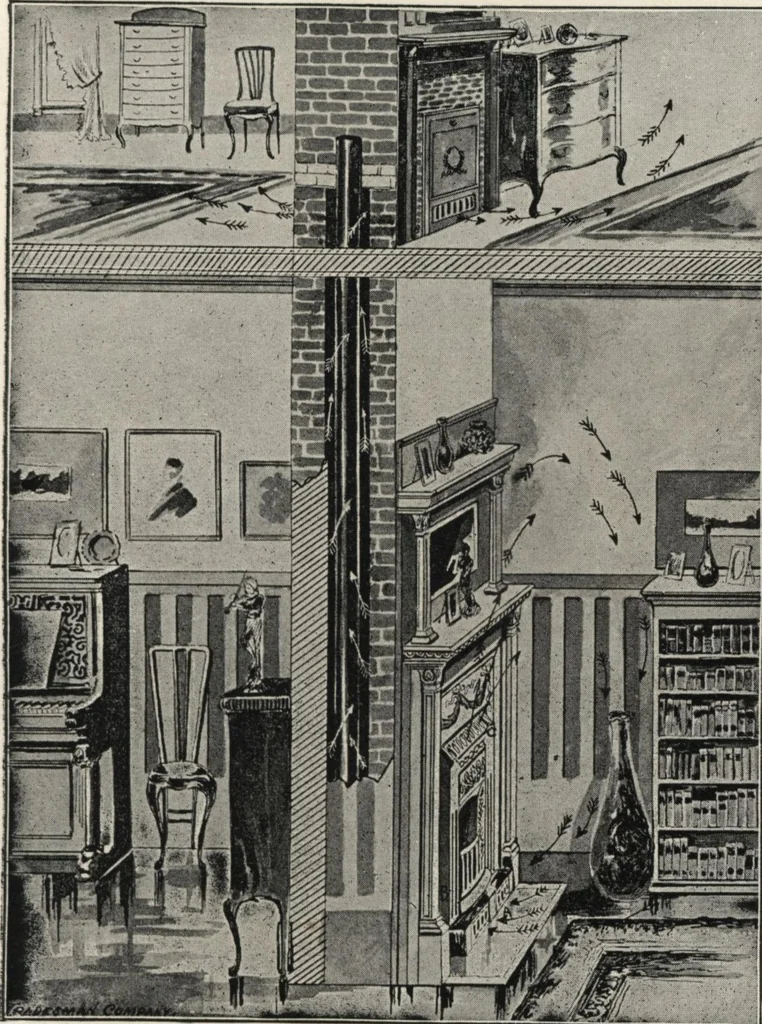

Plate No. 32—Represents the AlUine set in a partition wall,and givnig its heat into both rooms. The back of the Fire-Place and the smoke pipe are enclosed in a false chimney oflath and plastering on studing. The cold air passes into theregister at the base of this (as shown by the arrows)… … THE ALDINE OPEN FIRE PLACE With Special TopDamper Attachment. For heating upper or adjoin-ing rooms is shown in platesNos. 28, 30, 32 and 34. It is in every respect thesame as described on preced-ing page, except that it is soarranged that when set asshown in cut the entire warmair circulation can,…
