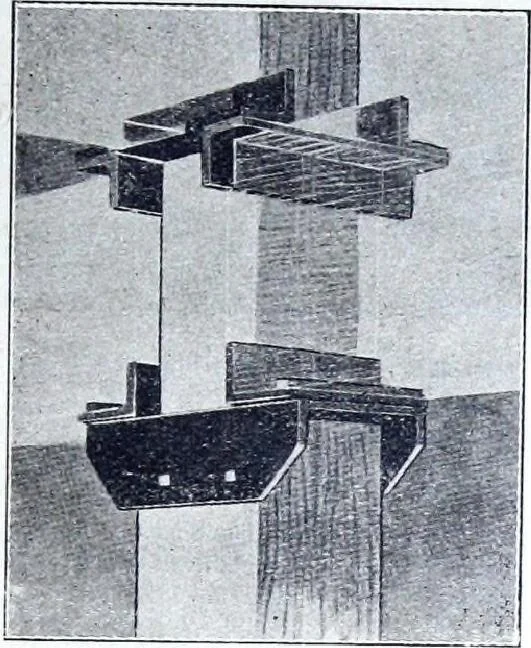

efully Instructions to Buyers on page 216 k THE MANITOBA BRIDGE AND IRON WORKS, LIMITED 187 Post Caps and Bases—Continued ATLAS POST CAPS (Patented) Material—Structural Steel Angles. Sizes—To suit any combination of posts and girders Styles—2-wav. 3-way and 4-way. R?^JJSrr^P°?n^^>u ^-V ^^^g:… … Post Collar. 2-way Post Cap No. 344 This cut shows a 14 in. x 14 in. lower post, 10 in. x 10 in. upper postAtlas ^-way cap carrying two double girders made up of two ] 0 in x 16 intimbers, and the Atlas Post Collar carrying an S in. x 1 2 in. joist on a levelwith the joists resting on the top of…
