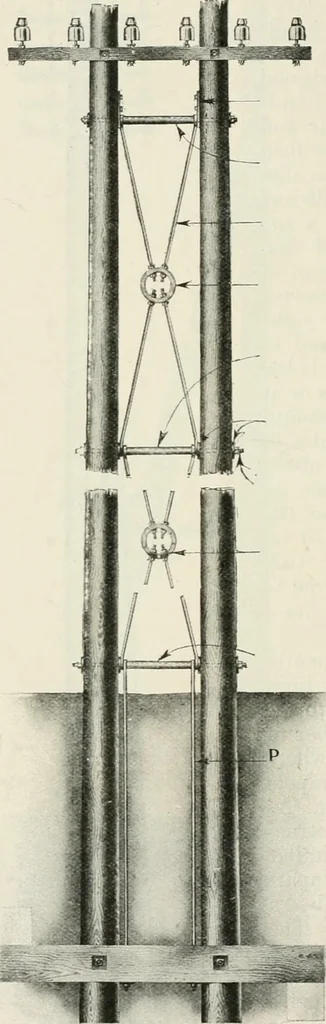

frequentlyemployed on very heavy lineswhere provision has to bemade for a large number ofwires and in situations wherethe conditions demand a poleof considerable strength. Asshown in Fig. Ill, this struc-ture consists of two similarpoles erected 18 inches apartand braced together by asystem of… … \ Fig. 111.—H pole. Fio. 112.—Iron polewithifoot plate. TELEGRAPH LTNES 185 against, lateral displacement is nlitained by means (if kickingblocks placed at right-angles to the ends of the timberbrace, the lower block being placed on the inside of thecurve. The triissiiig consists of horizontal tie…
