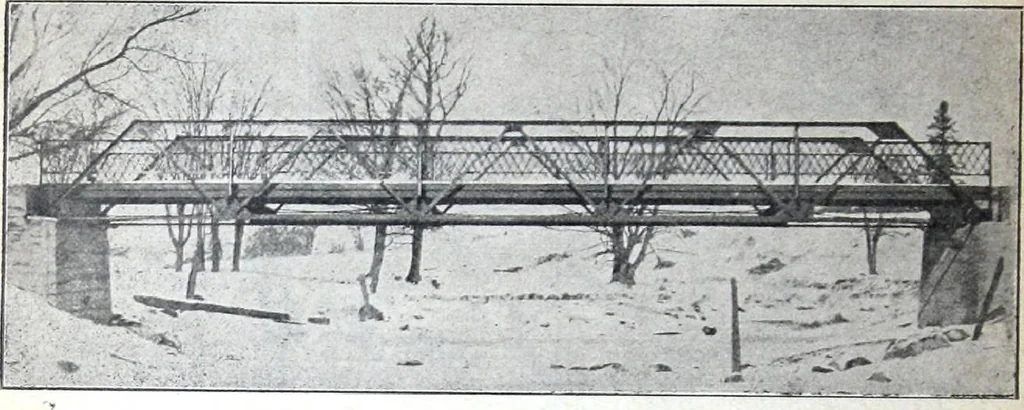

in use in Canada and the United States. This design is made up in accordance with Dominion Governmentspecifications covering Highway Bridges. State -width and length of span and we will tell you what the cost will be. When the span or distance between abutments is made more than 40 feetTruss or… … • - No. 137—Steel Highway Bridge—Low Truss Type. Truss Bridges may he either Low or High, depending on the span.Illustration No. 137 shows a Low Truss Bridge of 60 feet span, having awooden floor system. This type is known as a through, pony Warrenriveted truss and is in very general use where the…
