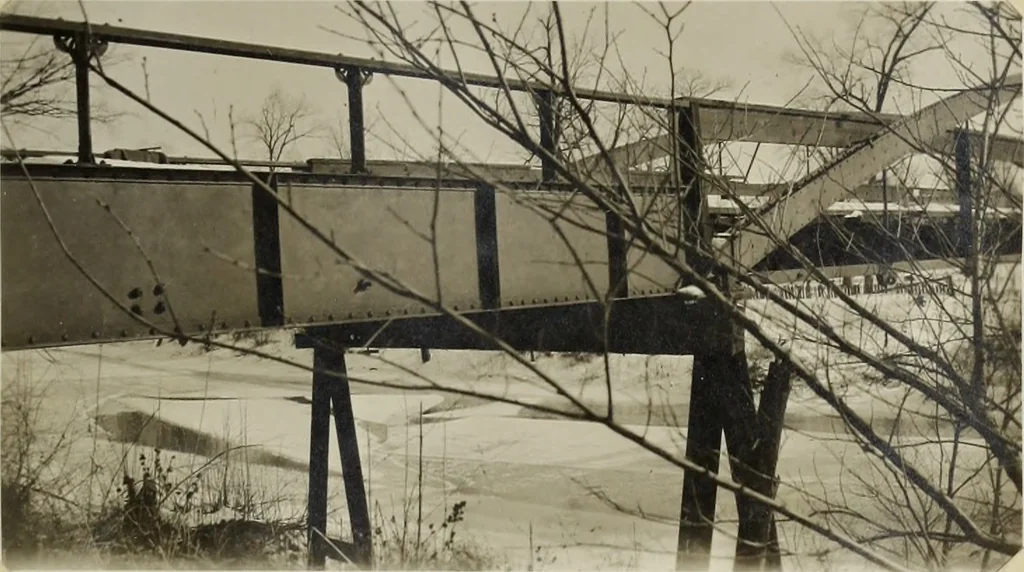

backs of theshoes and are fastened by nuts. DescriptionThe floor joists arefloor beam is constructed of a of the Girder Span. the same as in span a. The middle 9-inch 25-pound I-beam on top of which rests an 8 x 3 plank, and on top of this is a 14-inch6 1/4-pound I-beam. The floor beam at the north… … /v<^^5 G/rder ySpan C. flange angles of the girder which are inverted to form a shelfangle. The distance back to back of angles is 50 1/2. The webplate is 1/4 thick. The angles are 2 1/2. x 5 x 1/4. A rail-ing consisting of channels and plates runs along the top of thegirders. 8. table…
