Collection of United States patents granted to Thomas A. Edison, 1869-1884 (1869)

Edison, Thomas A. (Thomas Alva), 1847-1931, Peters, N. (Norris), lithographer, Hammer, William Joseph, 1858-1934, former owner. DSI, Edison, Thomas A. (Thomas Alva), 1847-1931, inscriber. DSI, United States. Patent Office · Washington, D.C. : U.S. Patent Office · leaf 153

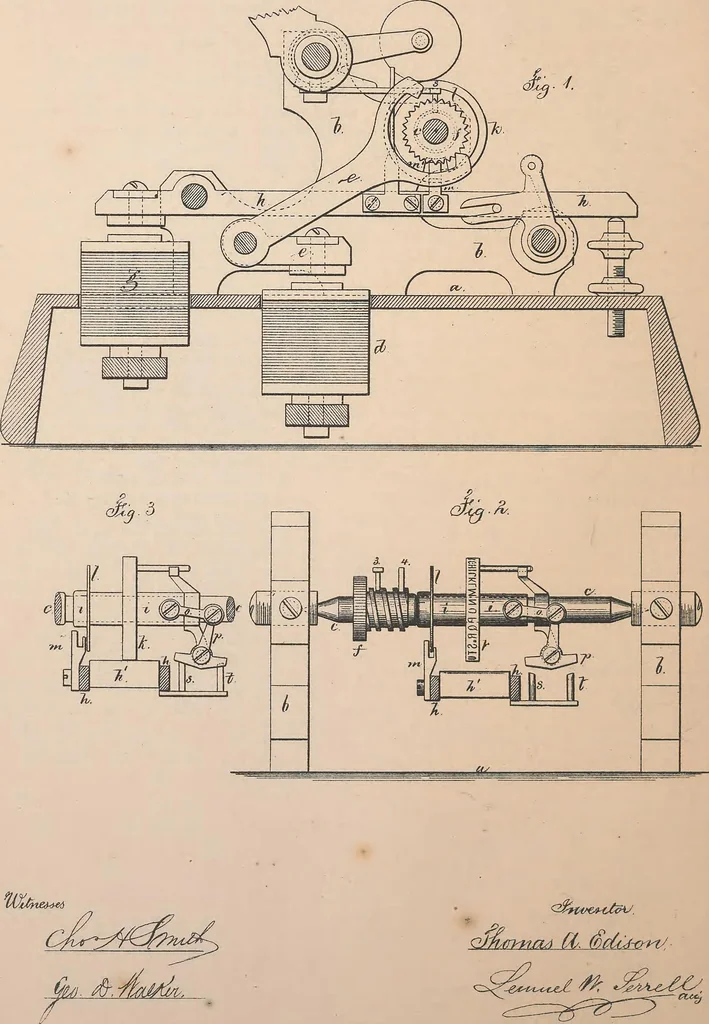

An illustration from Collection of United States patents granted to Thomas A. Edison, 1869-1884, 1869, leaf 153
pass up through the bed a, asset forth. 9. The arms t for the paper reel, sustainedupon and above the cross bar u that receivesthe arms of the ink-rollers, as set forth. 10. The impression-shield, made as an openthree sided spring-plate, attached to the im-pression-lever, as and for the purposes… … N. PCTERS. Photo-Uhographer. Washington. D. C. 136,533 United States Patent Office. THOMAS A. EDISON, OF NEWARK, NEW JERSEY, ASSIGNOR TO GOLD ANDSTOCK TELEGRAPH COMPANY, OF NEW YORK CITY. IMPROVEMENT IN PRINTING-TELEGRAPHS. Specification forming part of Letters Patent No. 120,5:53, dated May 7,…

Trade catalogs · Patents · Edison, Thomas A. (Thomas Alva), 1847-1931 · Inventions · Telegraph · Electric machinery · Electric apparatus and appliances · Phonograph · Telephone · Motors
