United States. Patent Office · Washington, D.C., Govt. Print. Off. · leaf 831

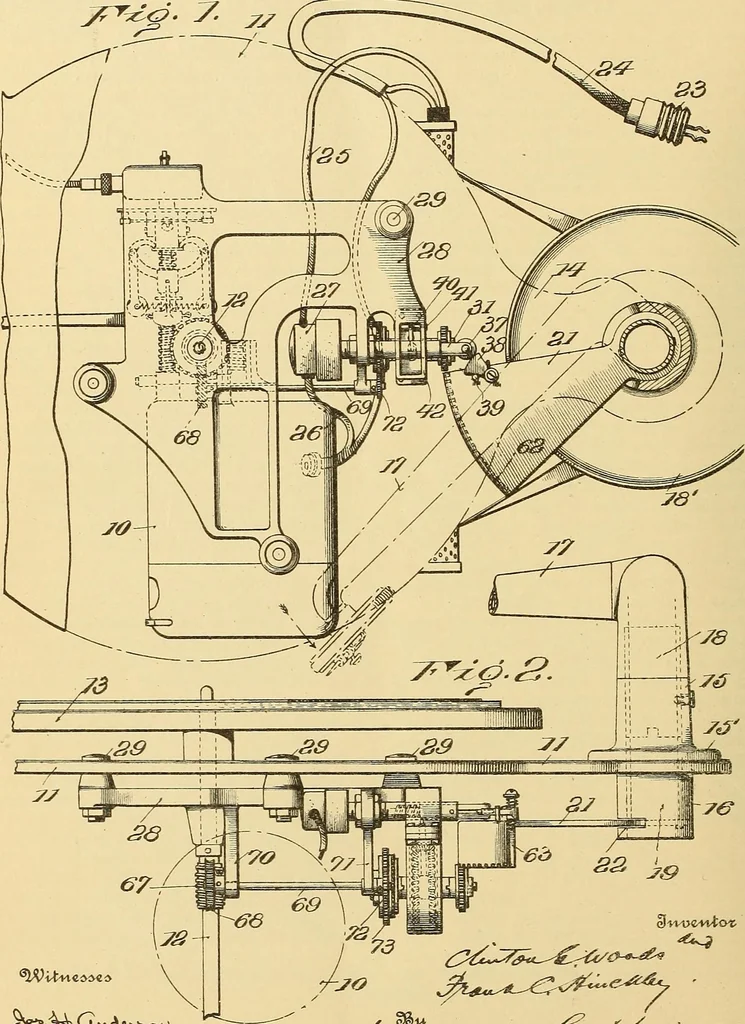

i patent may be obtained for five cents each, by addressing the Commissioner of Patents, Washington, D. C. (GRAPHOPHONE PATENT) 1,264,588 START AND STOP MECHANISM FOR TALKING MACHINES. 1,264,588 C. E. Woods & F. C. Hinckley, Filed Oct, 15, 1913, Renewed Mar. 10, 1916,Patented Apr. 30, 1918. C.… … ^Wvt-Heoacs 73 &C^Z«^-r6/<>+^ Qtfcw*v«^5~ 1,264,588, C. E. WOODS & F. C. HINCKLEY.START AND STOP MECHANISM FOR TALKING MACHINES.APPLICATION FILED OCT. 15, 1913. RENEWED MAR. 10, 1916. Patented Apr. 30,1918. 3 SHEETS-SHEET Z.
Phonograph · Patents
Internet Archive · Smithsonian Libraries · Public Domain Mark 1.0. Free to use for anything.
![An illustration from [Graphophone patents], 1878, leaf 831](https://img.insideoutlibrary.com/img/1024/ia-graphophonepaten20unit-831-380.webp)
