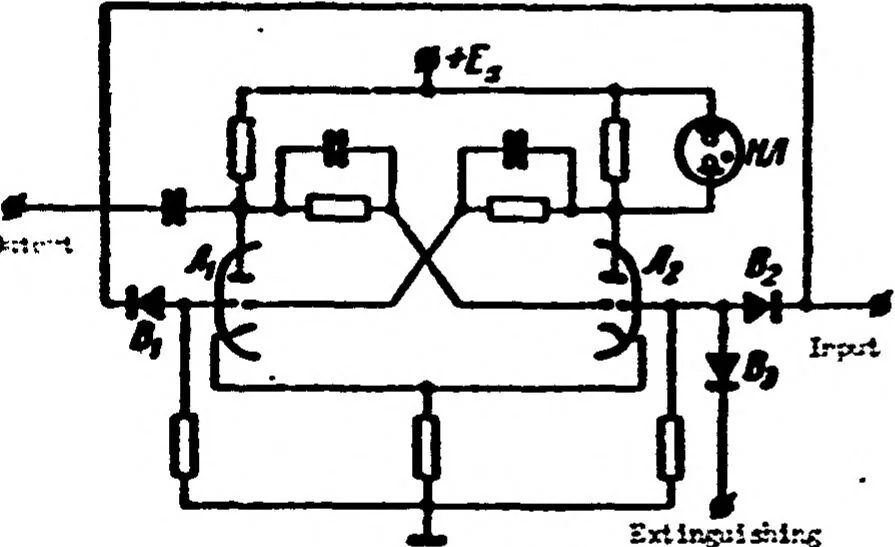

eration of trigger transfer from one stable state to another. Trigger circuit is usually not gathered on two separate tubes, but on two halves of one double triode, or pentode. He will now supplement our considered circuit in accordance with the needs of computer technology (Fig. 16). Let us join… … Fig. 16. Diagram of a trigger as an as the initial state of the trigger that element of a counting circuit. when the current in the first tube is the greatest, and second tube is locked, and will allot to this initial state the value 0. Second state, when first tube is locked, but current in second…
