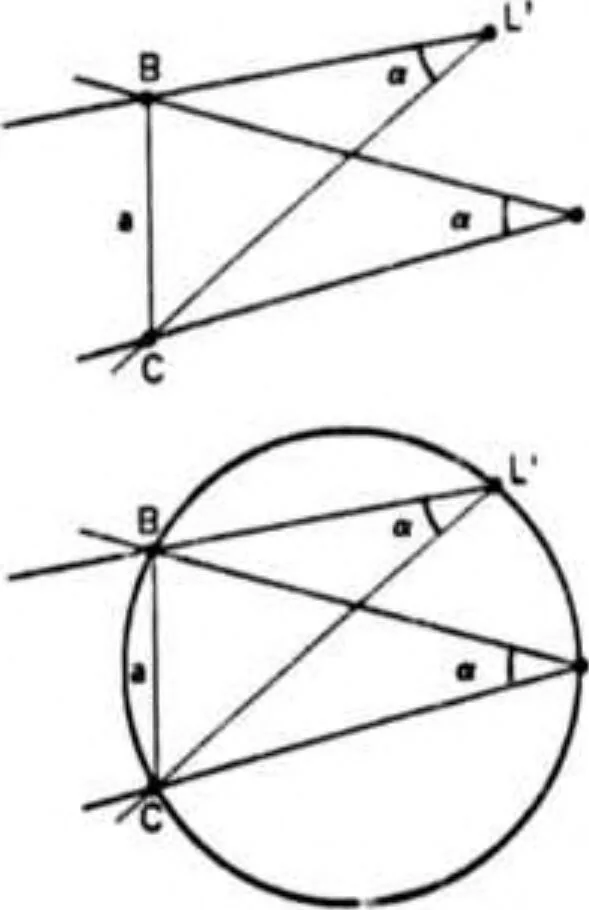

LOCUS SOLVING 9 2 Camera Locus Solving: On* View o! Three Points FIGURE 9 2 - FIVE IRON TRIANGLE DIAGRAMS In order <0 put the iron triangle into the tripod, the edge BC is first placed between the tripod legs of angle a Let a be the length of BC, likewise b and c are the lengths of AC and AB. … Also in a circle the angle at the center is double the angle at the circumference, when the rays forming the angles meet the circumference in the same two points And the perpendicular bisector of a chord passes thru the center of the chord's circle bisecting the central angle. Let S be the distance…
Baumgart, Bruce Guenther · Stanford univ ca dept of computer science · Computer applications · Computer graphics · Image processing · Artificial intelligence · Computer programming · Semantics · Television cameras · Theses · Three dimensional · Vision
Internet Archive · Defense Technical Information Center · Public domain (US government work). Free to use for anything.
