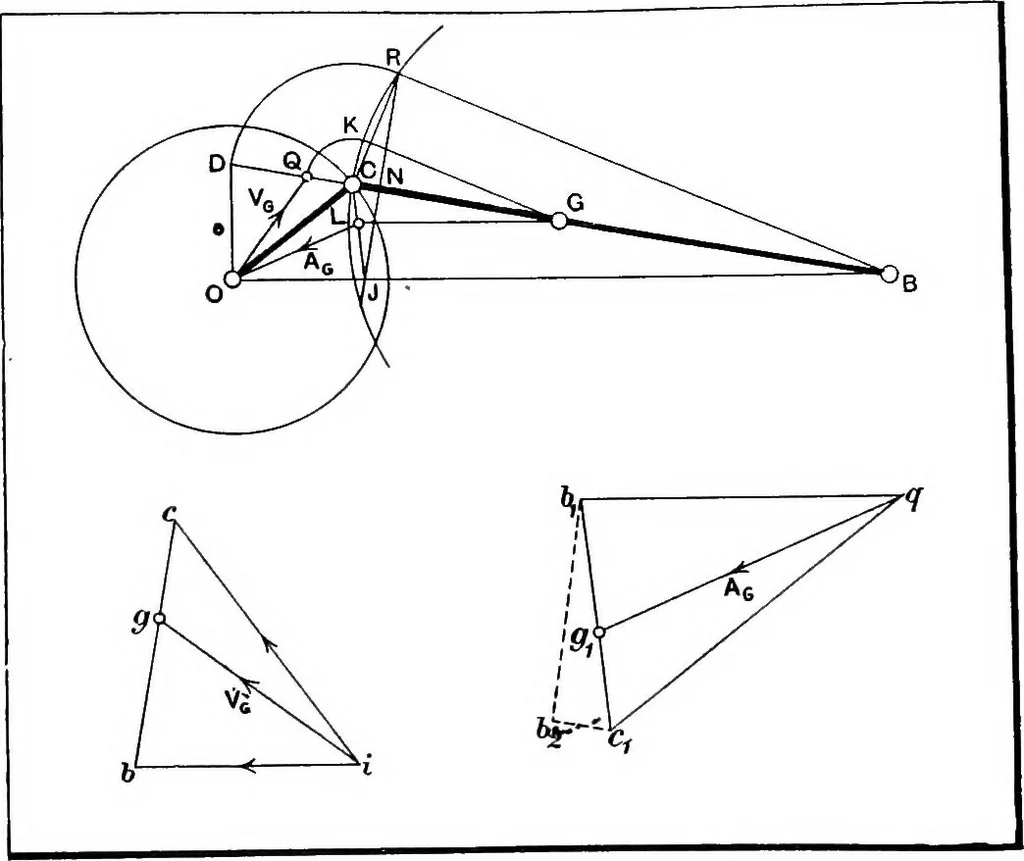

RAPHIC DYNAMiaS crank-pin, say C, and join OC and produce it, meeting theother circles in B and F respectively; then FB is the dis-placement of the point B from its in position Bt for thegiven position C of the crank-pin. If the actual position ofB is required, it can be swung down by means of an… … fiG. 71. General Velocity and Acceleration of Connecting-rod. the connecting-rod and in the analysis of valve-gears, inwhich motion is taken from a point upon the connecting-rod,we require to know the velocity and accelerations of sucha point. This is very easily done by means of the relationswhich…
