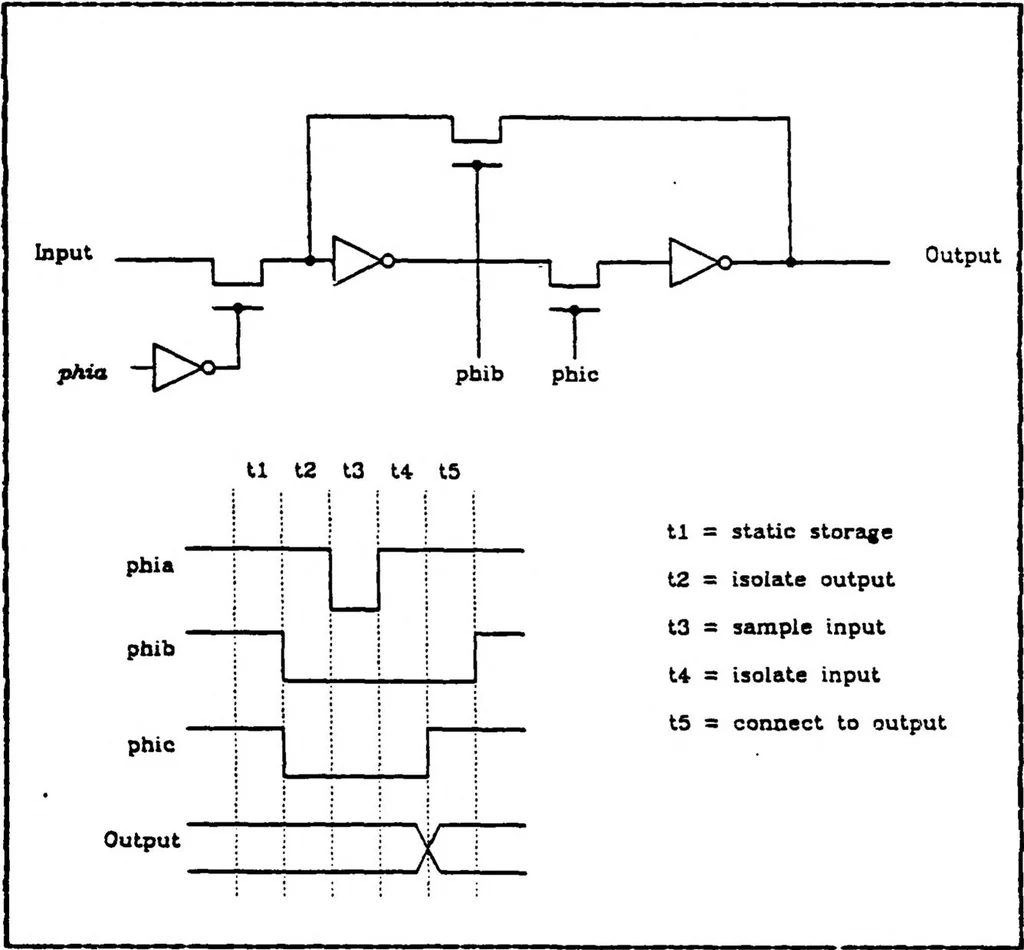

State tiling is controlled not by a two-phase son- ewer lap ping clock/ which is somewhat standard in NMOS VLSI/ hat by a three-phase clock which drives the register circuit shown in figure 2.4. This clocking scheme appar¬ ently allows a more compact layout of the register erga- nelle, but requires… … Figure 2.4 flacPitts Register Circait and Timing Diagram. 25
