Detrick arches showing their adaptability to all types of boilers and stokers, special furnaces and oil stills (1921)
M.H. Detrick Company. · M.H. Detrick Co. · leaf 8

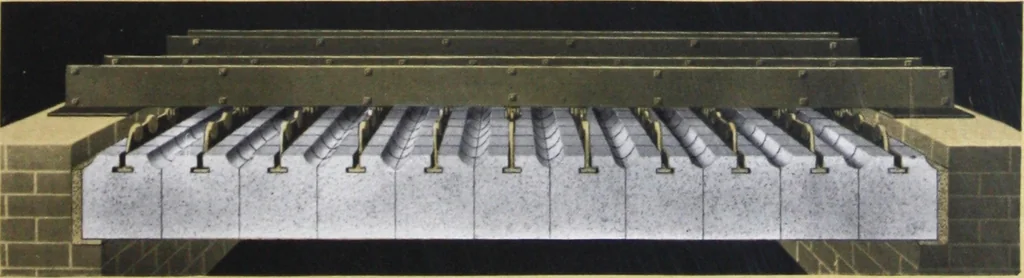

End Construction ShowingMethod of Hanging Tile Front View of Arch Showing Method of Suspending Arch Castings and Tile … Page Seven DETRICR llllllil I III ARCHES As shown between the two middle beams in the illustration on page 6, every archmore than 7 feet 6 inches in length has one or more drop hanger castings near thecenter. This casting supports one or more tile and rests on the adjacent tile. It can belifted out…
Building materials · Masonry · Refractory masonry · Flat arch
