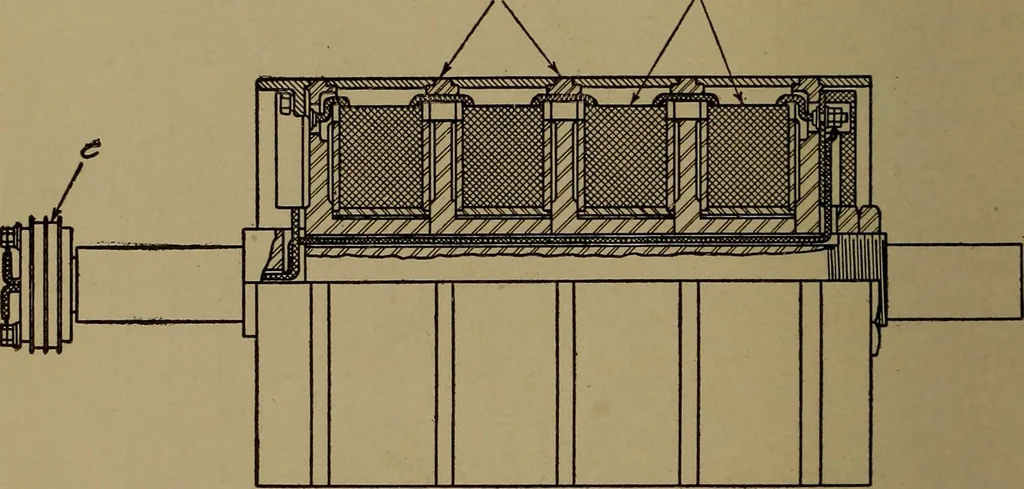

ough the slip rings H. The friction lining D is also fastenedto the driving member. The armature E is fastened to the endof the driven shaft by means of the spring plate F, which is boltedto the flange G. When the current is applied to the coil C,armature E is attracted and presses against the… … Fig. 30. Separator Pulley Magnetic Separator Pulley. Another application of the elec-tromagnet is the magnetic separator pulley, the construction ofwhich is shown in Fig. 30. The pulley shown in the drawinghas four coils A connected in series. At each end of the pulleyand between the coils, iron…
