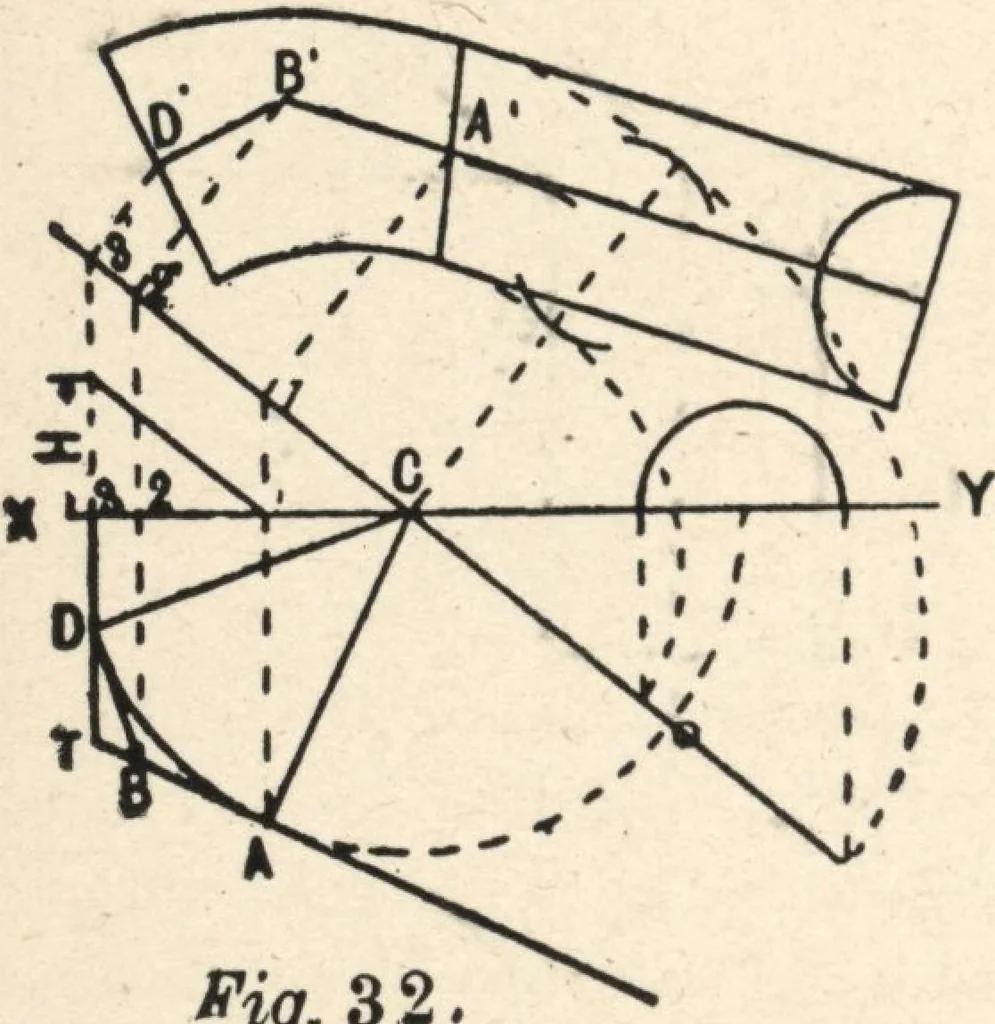

from TD, B and Acut this line draw lines at right angles. Measure onthese the distances iA, 2B and 3D, join ABD andmake the joint square with BD. Draw the springingline through A to C and on the line from C set off theradii of the inside and outside of the rail for the minoraxis. Turn the center… … % 32 THIRD METHOD board. Square over a line and measure zoff on this the radius of the center line ofrail CA. Then with C, Fig. 32, as center, Jdraw an arc tangent to AB. Then fromC draw the arc, cutting LM; draw from S^S^tthe intersection to C, and in the angle is cH——^Athe bevel for the shank…
