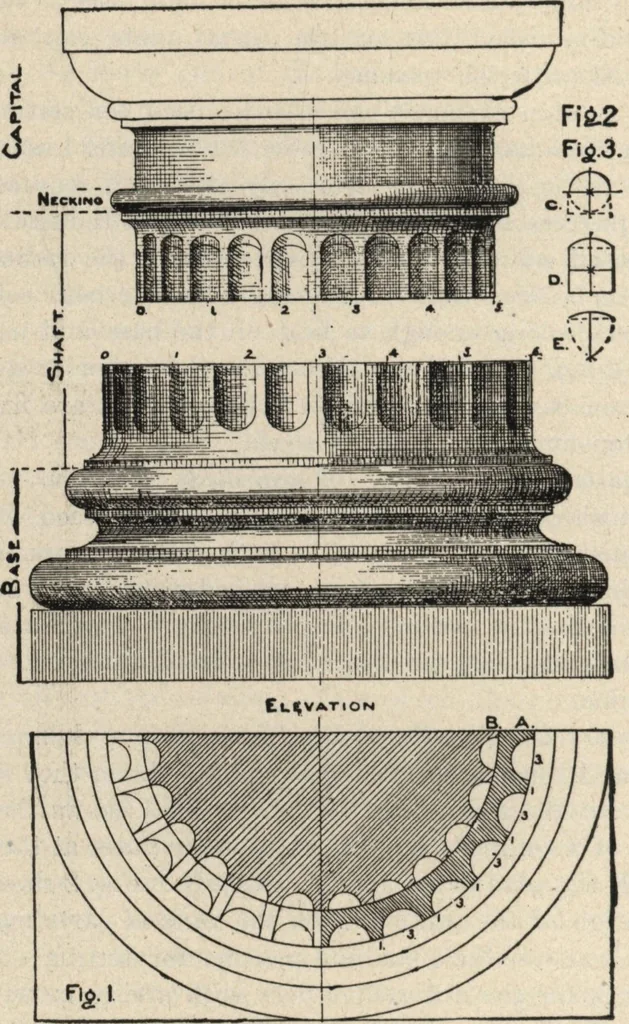

at the top of the shaft. Fig. 2 shows theelevation of the column, with the various parts marked.Fig. 3 shows the plan and centres for setting out theflutings for the different orders with arrises or wTith fil-lets. A fluted column may be divided into twenty,twenty-four, or twenty-six flutes,… … P WAN -Diminished Fluted Columns.NO, 10. METHODS OF WORK 185 the circle, one by the sixth, and others by the halfcircle, as shown at C, D, E, Fig. 3. The square or fillet of the second kind is equal to one-third part of the flute. It will be seen in Fig, 2 thattwo lines are shown at the top of the…
