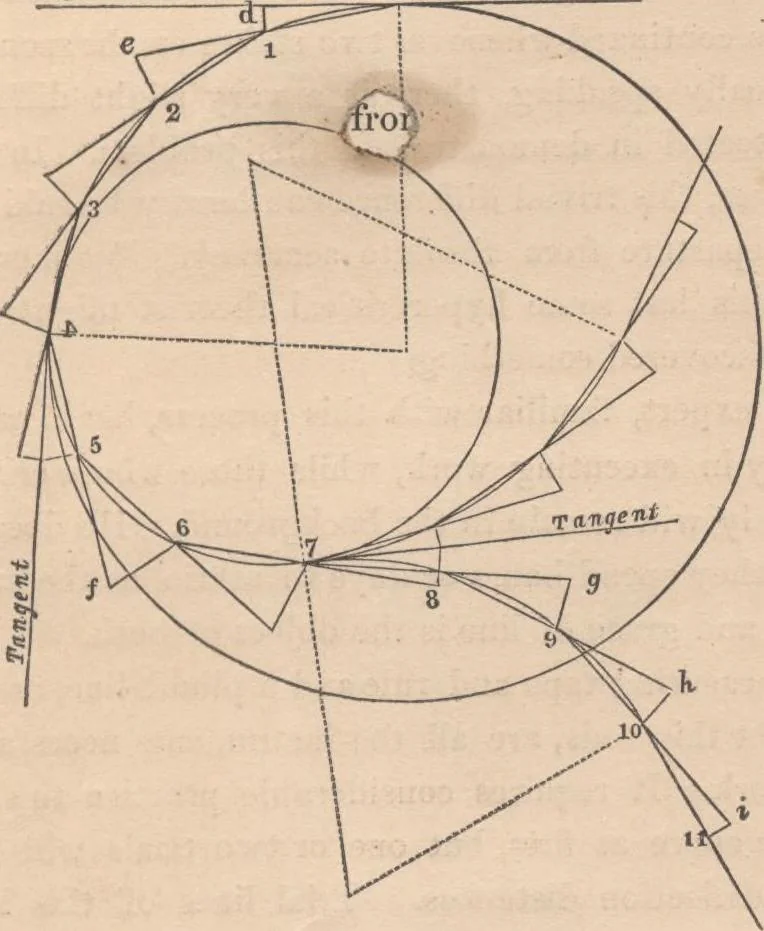

en producethe line from 7 through 8 to g, and lay off the deflectiondistance 12 inches from g, and set station 9; then producethe line from 8 through 9 to h, and lay off 12 inches to AND BUBAL AET. 131 station 10; then produce the line from 9 through 10 to i,and lay off the tangential distance 6… … Fig. 1T8. begins and ends on a tangent. Where a curve compoundsor reverses, the tangent is common to both. A tangent orstraight line may be introduced between curves runningin an opposite or similar direction, but curves running oneway should join each other. It is bad taste to put a tan- 132…
