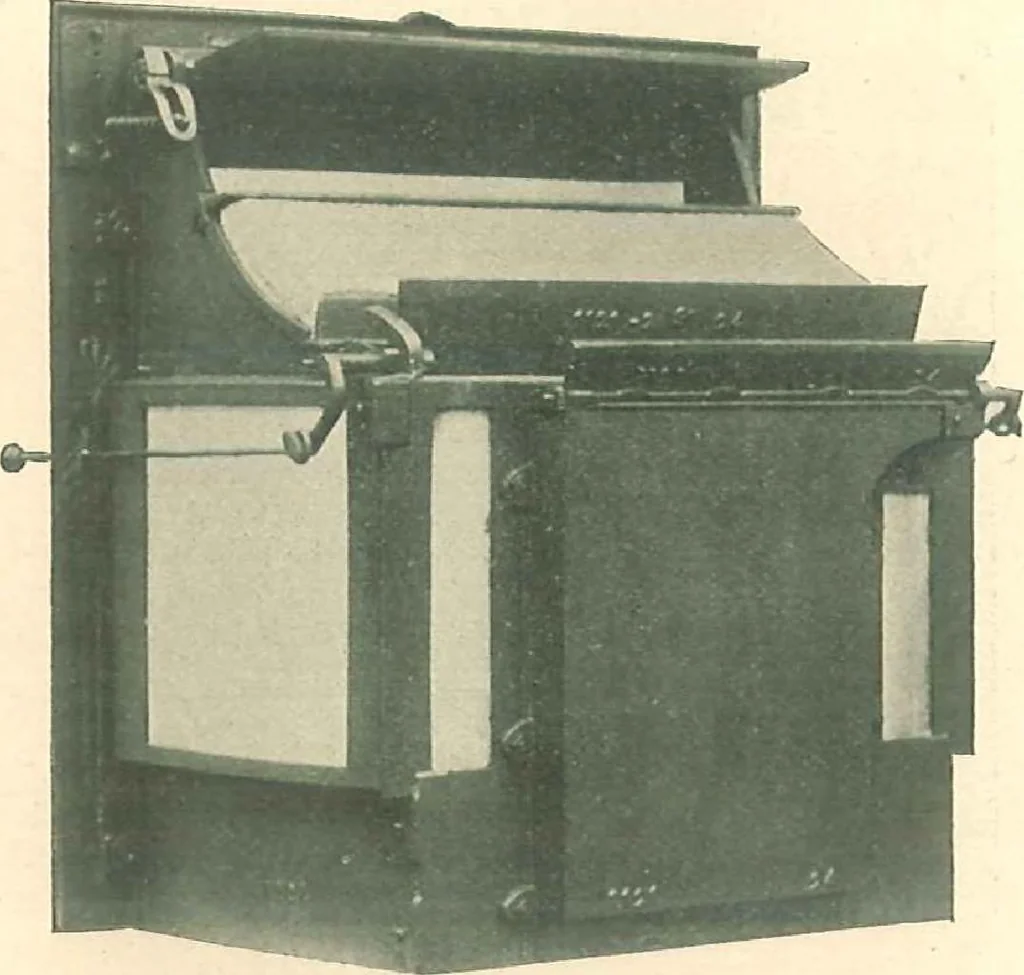

-ing limited amount of fuel. It is also used whenshaking the grate, to carry the dust up the chimney. Extra-heavy rocker shaker bottom, with trunnionsand back bar protected from Are under back. Back bolted together, allowing for expansion. Fire tile above fire bed set in asbestos cement. Size of… … Side and Rear View of the New Monarch, showing dampers, tile top and down draft flue. Note mode of holding top tile in position. Also screw arrangement to open upper damper. No. 1. Upper or Flue Damper. 2. Lower or Direct Damper. 3. Down Draft Damper. {> 4. Top Tile. 5 & G. Anchor Irons…
