How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 122

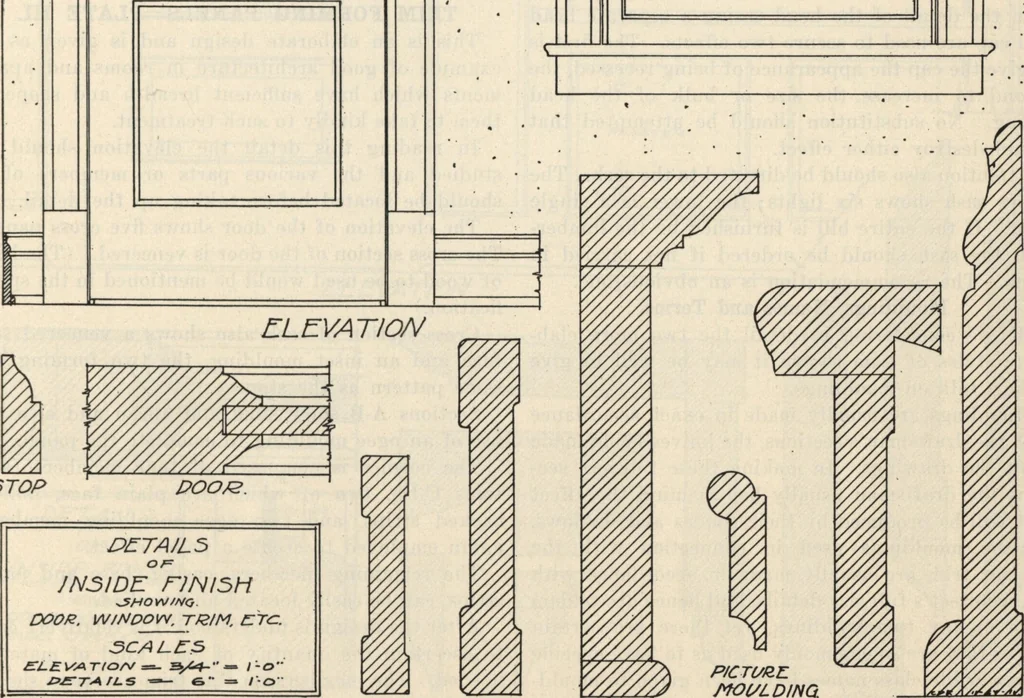

PICTUREMOULDING BASE. Plate I. Plain Trim. DETAIL DRAWINGS 119 f>tcT£//ejE Mc?csi-i>//va. ~ &OQ&, PI-A.ST-JZ1Z.. W/NPOW. … s5TOP CHAIRJ2A/L CA3/NQ. HEADCASING STfflL&APRON BA5E Plate II. Cap Trim. 120 HOW TO READ PLANS In each case the drawings convey to the educatedeye the same facts, viz., the appearance of the trim,and the manner in which it goes together; also theappearance of an opening after it has been…
