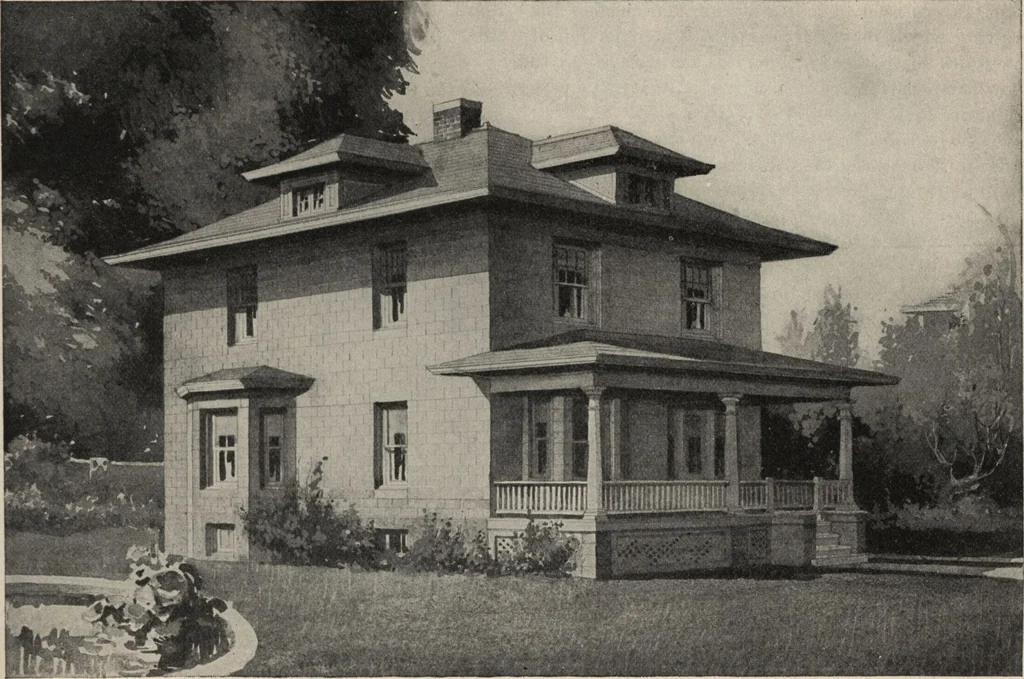

to second floor and thearrow shows that the stairs go up from the firstfloor level. From the kitchen a short flight of stairsalso goes down to the grade entry. At the line representing the second riser there is asmall square with diagonals. This represents thenewel and the lines from the newel to… … Fig, 41—Perspective of a concrete block residence of seven rooms. Two and a half stories and basement. Design No. 6564.We can furnish blue printed working plans of this building to any desiring them for only $10.00 per set.
