How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 22

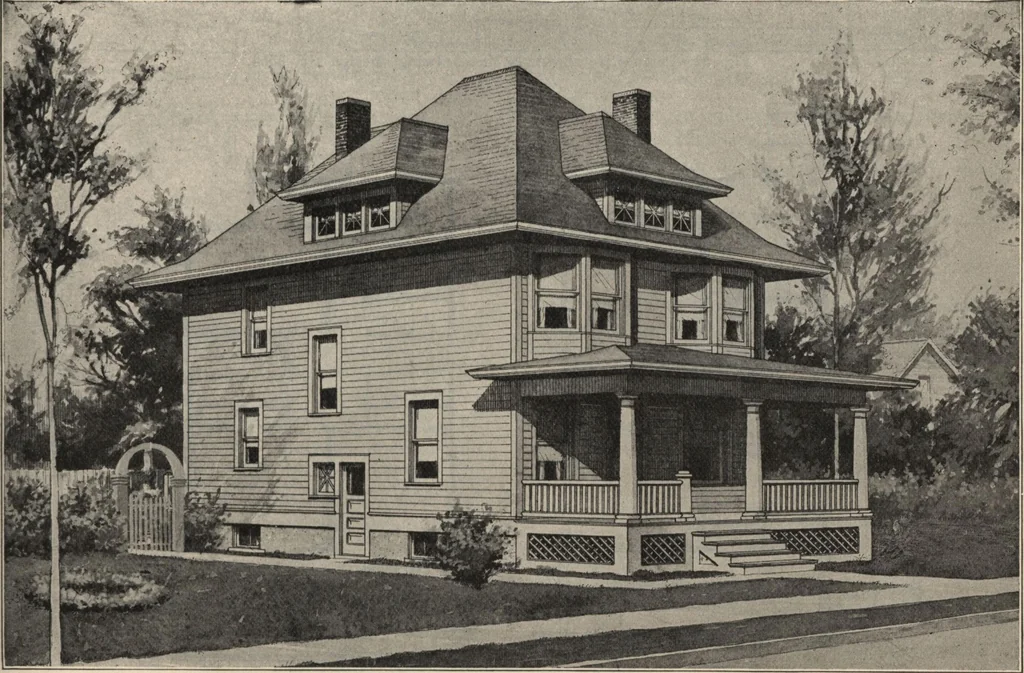

Fig. 49—Indicating location of furniture. Fig. 50—Placing bedroom furniture. First and second floor plans for design No. 6677. … Fig. 51—A perspective shown in wash drawing. A very economical house to build. Eight-room, frame construction, hip-roofdesign. Size, 26 by 36 feet 6 inches. Design No. 6554. We can furnish blue printed working plans of this building to anydesiring them for only $8.00 per set, 24 HOW TO READ PLANS
Building materials, house plans · House contruction · Lumber
Internet Archive · Building Technology Heritage Library · Public Domain Mark 1.0. Free to use for anything.
