How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 24

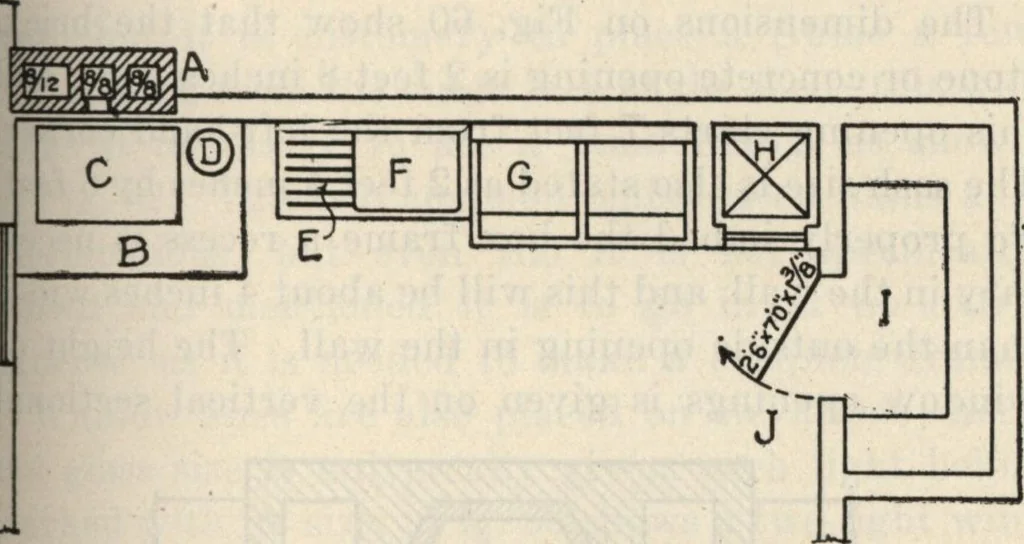

ed conventionalmethods; that is, they are not true drawings butonly a simplified way of designating them: or, wemay say, they are a sort of shorthand sketch. Nomatter how they are drawn, as long as they conveythe true meaning of the architect to the workmanthey accomplish their purpose. They are so… … Fig. 55—Arrangement of kitchen fixtures.
Building materials, house plans · House contruction · Lumber
