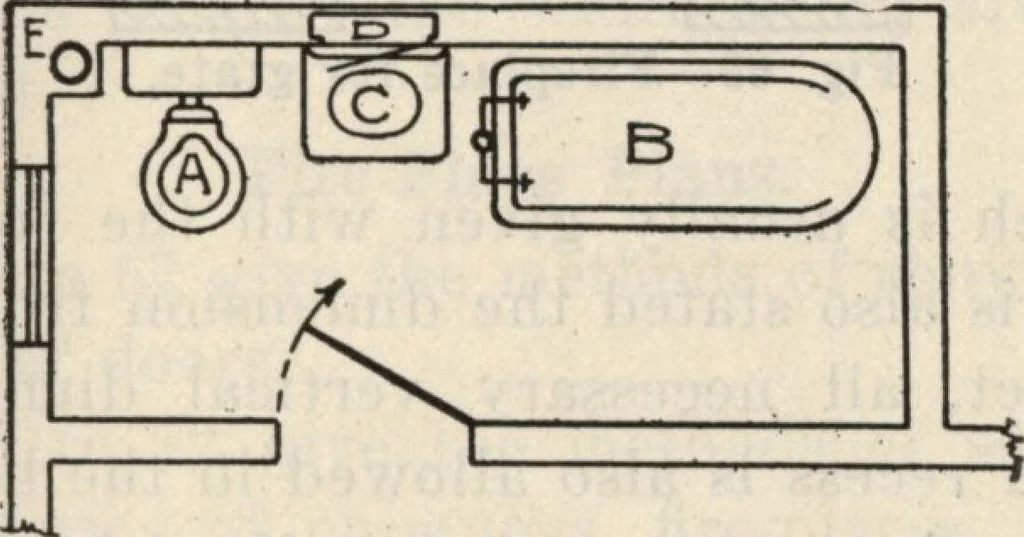

Fig. 55—Arrangement of kitchen fixtures. … Fig. 56—Showing location of bath fixtures. derstand that A represents the chimney, B thehearth, C the range, D the boiler, E the drainboard,F the sink, G the washtubs, H the dumb waiter, I apantry with shelves; J represents another method ofshowing a door, and how it should be swung; thelight line…
