How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 27

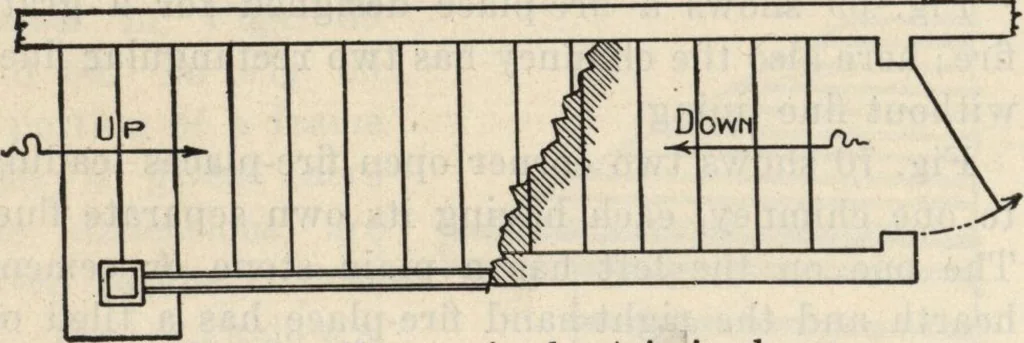

i 2 3 4 5 6 7 8 9 n Up … Fig. 76—How a simple stair is shown. the difference between this chute? and the dumpshown on Fig. 70. Pantry Arrangement.Fig. 73 shows a pantry arrangement connecting akitchen on the left to a dining room on the right.A indicates a zinc or galvanizediron drip pan from an ice-box,ice being placed in…
Building materials, house plans · House contruction · Lumber
Internet Archive · Building Technology Heritage Library · Public Domain Mark 1.0. Free to use for anything.
