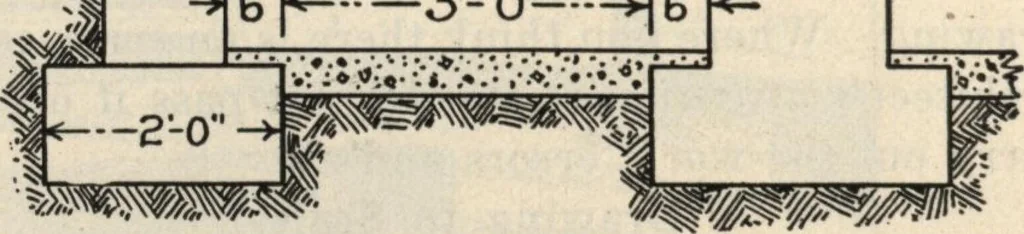

echimney omitted on one or more floors; take care,too, that they are all in line. For some particularreason it is necessary to offset a chimney (to cleara hip or valley rafter for example). Look carefullywhere chimney comes thru on the different floorsand measure the distance from its outside to… … Fig. 113—Showing variations in measurements from insideof walls. MISTAKES IN READING PLANS 45 J ij o CO 1 • 1 j * 5-0—-> w@ CO %7K cu J 1 it» m^zm^^Lj % n w Fig, 114—Dimensions to chimney from outside of walls. walls vary, in almost every case the foundation wallis thicker than the upper walls.…
