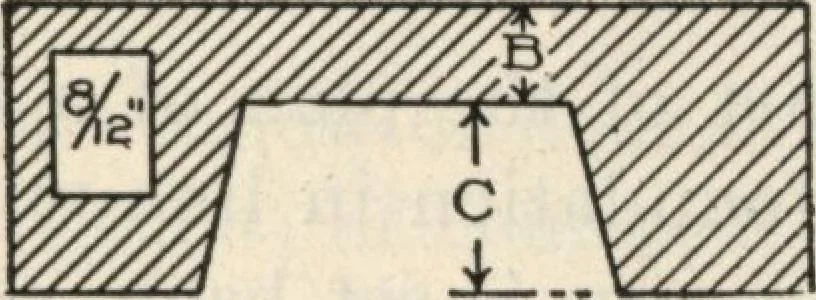

14—Dimensions to chimney from outside of walls. walls vary, in almost every case the foundation wallis thicker than the upper walls. In large cities thebuilding laws for even small frame houses call fora 12 foundation below grade, and 8 above grade,and of course 6 wall for frame house. This… … Fig. 115—Dimensions of open fireplace. on the plan, place them there yourself as a guide,one each from the side and rear or as the case maybe, as shown in Fig. 114. When the Chimney Is Out of Place.The chimney on the elevation is sometimes shownin the wrong place or the point where it comes outthru…
