How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 44

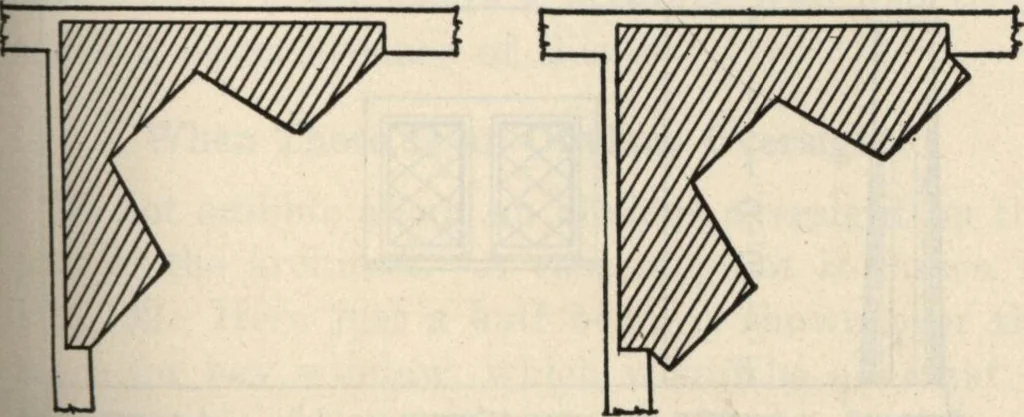

ig. 114. When the Chimney Is Out of Place.The chimney on the elevation is sometimes shownin the wrong place or the point where it comes outthru the roof is wrong. To be on the safe side, beguided by the floor plans, but also look at the ele-vations as it may be that an offset is required to cleara… … Fig. 116—Common method ofshowing corner fireplace. ^TZmPT^TTTTPTA
