How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 6

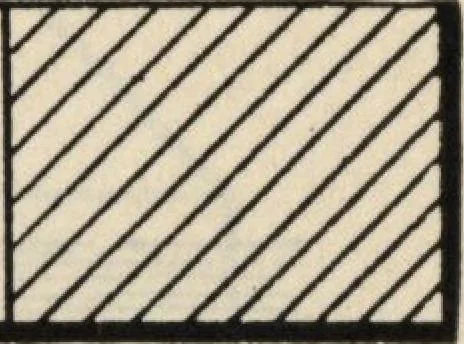

I i … Fig. 18—Section of two blocks with rectangular holes. the section lines slant in different directions, as inFigs. 17 and 18. Where this is done, one can tellfrom the section alone that there are two separatepieces. CHAPTER III. HOW DIFFERENT MATERIALS ARE SHOWN IN SECTION Where a piece of mill work…
