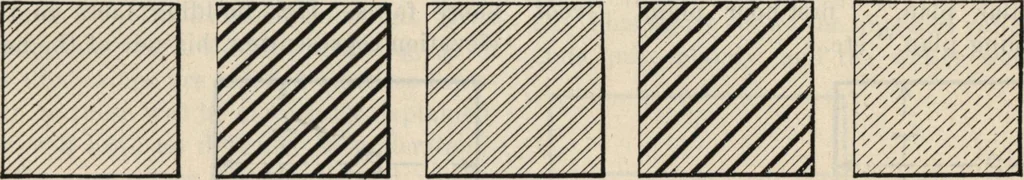

section lines do not continue, one willknow that the section shows a different piece fromthe one adjoining it. To show the various materials used in a building,different forms of section lining are used. ThusFig. 19 gives the conventions used by a number ofdraftsmen. Usually on some part of the… … CAST IRON. :*■ COPPER. WROUGHT IRON. CAST STEEL. WROUGHT STEEL.
