How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 6

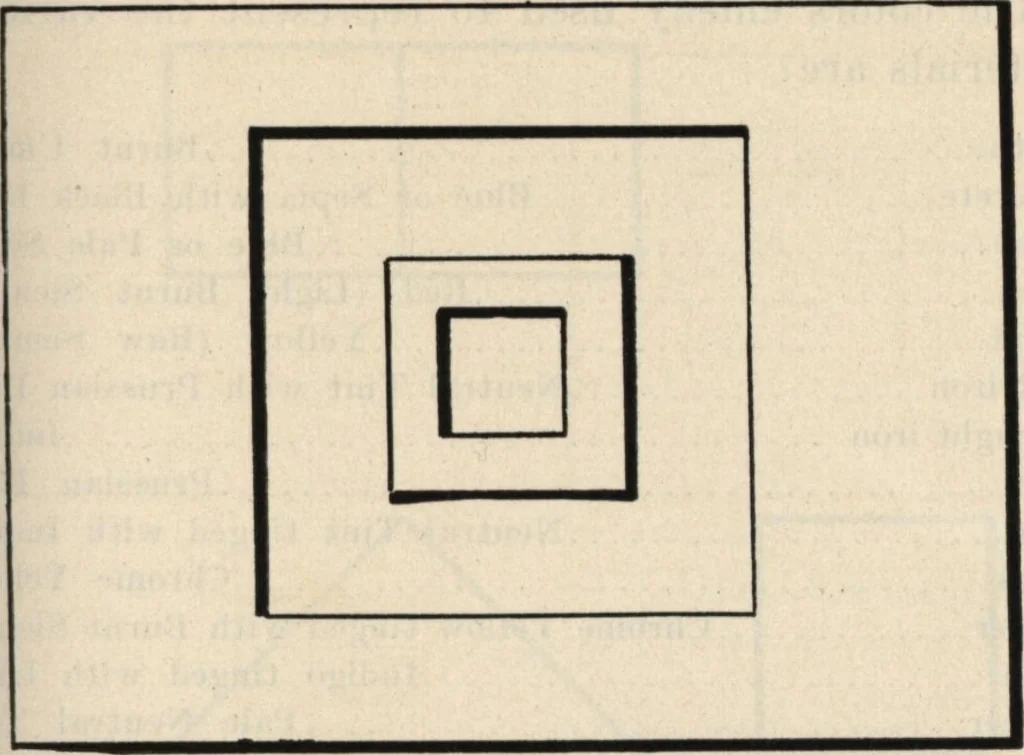

Fig. 10—Elevation adth dotted lines showing hole. Fig. 16—Cross section of block with three rectangular holes. ELEMENTARY FACTS … Fig. 17—Plan of two blocks with rectangular holes. ing of a T-iron in Fig. 13 and the moulding, Fig. 14,which shows two methods; that on the left showsthe entire section of the moulding, while the method •shown on the right gives merely the contour or■outline of the curved part. When a sectional…
