How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 7

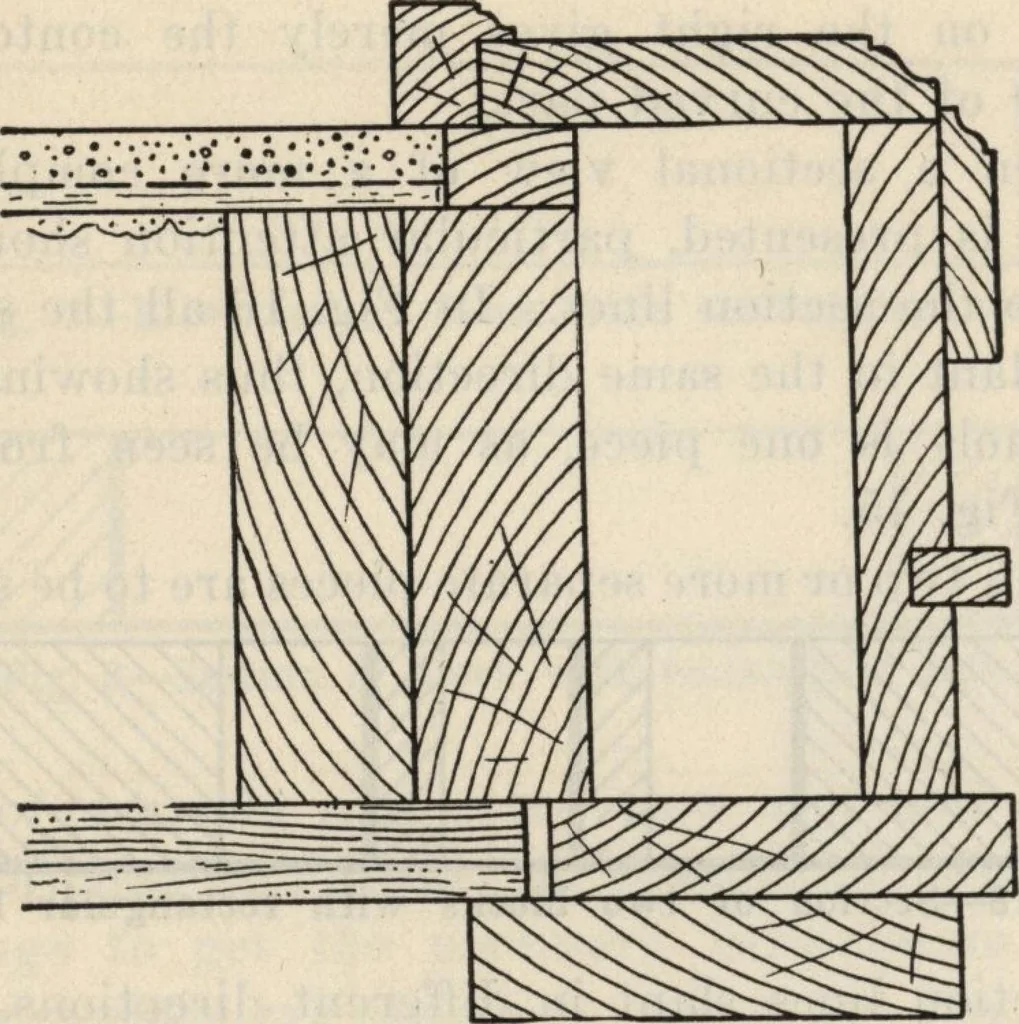

WOOD. STONE. EARTH. Pig. 19—Different methods of section lining to represent various materials. HOW TO READ PLANS … Fig. 20—Use of sectional lines to show various parts. The colors chiefly used to represent the variousmaterials are: Earth Burnt Umber Concrete Blue or Sepia with Black Dots Stone Blue or Pale Sepia Brick. , .. .Red (Light Burnt Sienna) Wood Yellow (Raw Sienna) Cast-iron . . . Neutral Tint with…
