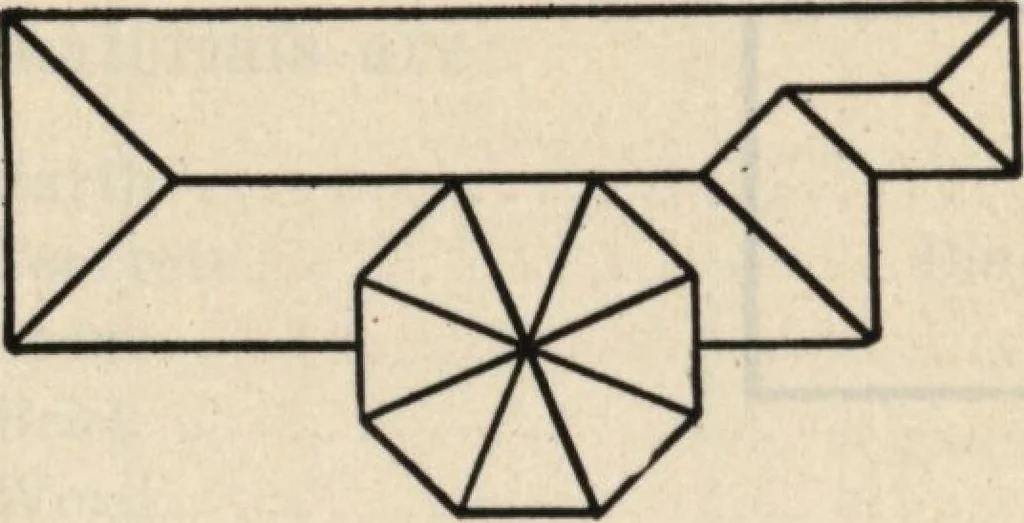

elevation, and side view, have been drawnon Pig. 26. These dotted lines are called projectionlines. By following the projection lines the readershould have no difficulty in recognizing each parton the different views. These projection lines arebut seldom drawn but if you will imagine these lineson…
