How to read plans and take off bills of materials. (1917)
William A. Radford · Radford Architectural Company · leaf 9

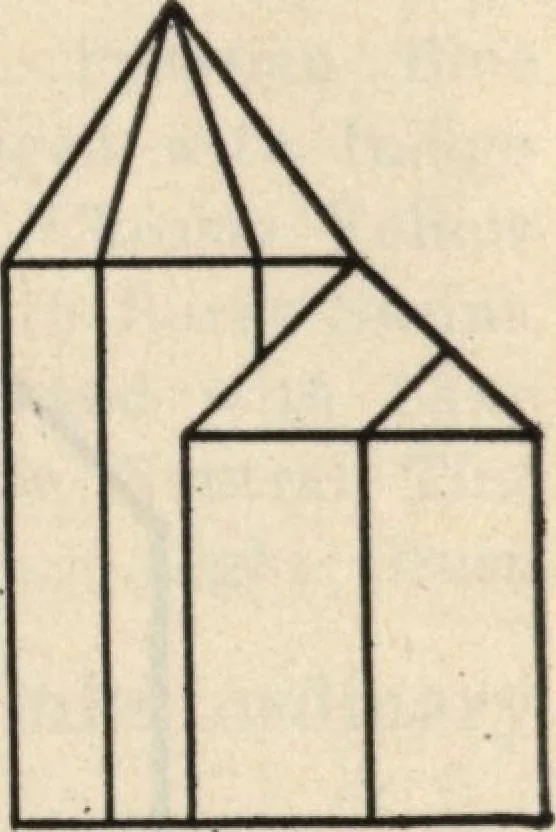

Fig. 27—A complicated roof design drawn without projection lines. see clearly how each point on the plan correspondswith the same point on the elevations. For simple objects, three views are usually suffi-cient, but in the case of a building, an elevation ofeach side usually is given, to show the…
