Illustrated catalogue of galvanized iron roofing and shedding, iron structures, &c. : patent portable steel railways, railway plant, iron bridges, &c. (1884)

A. & J. Main & Co. · A. & J. Main & Co. · leaf 10

An illustration from Illustrated catalogue of galvanized iron roofing and shedding, iron structures, &c. : patent portable steel railways, railway plant, iron bridges, &c., 1884, leaf 10

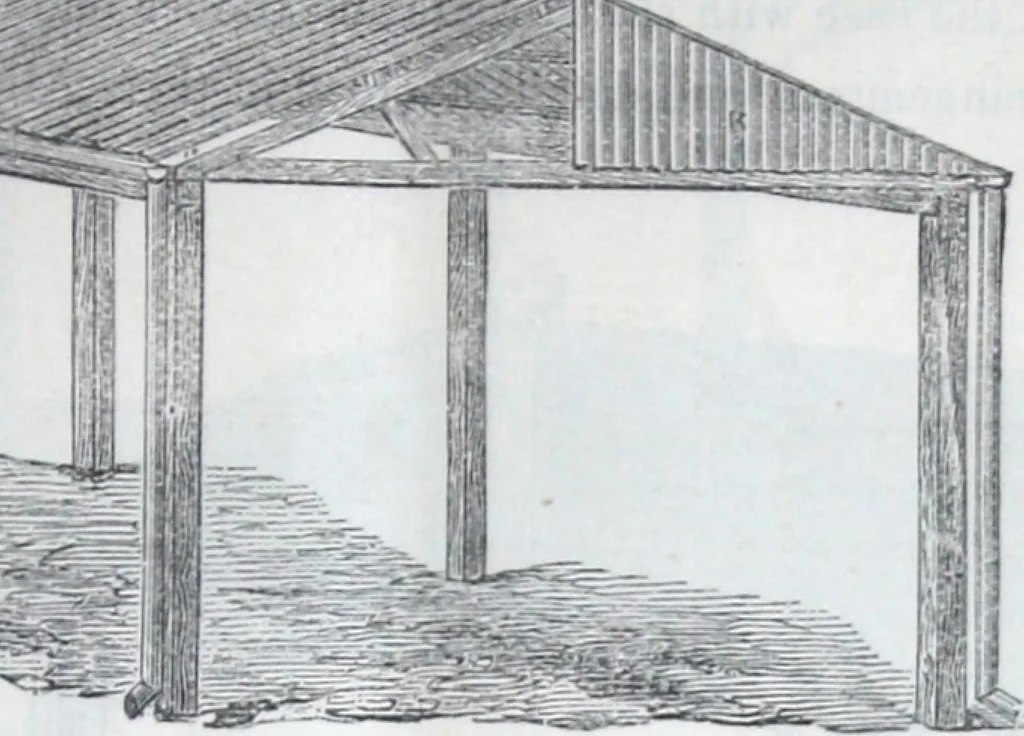

others.This style of Building can be erected in a varietyof forms, and to any required dimensions. BEADING ROOMS, BILLIARD ROOMS,COTTAGES, and all other similar erections. No. 421. Galvanized Iron Roofing and Structures. GALVANIZED IRON ROOFING ON TIMBER FRAMING. Galvanized Sheets ean be… … No, 319 illustrates the application of Galvanized Sheets to anordinary Ridge-shaped Roof with Wood Framing. In this constructionof Roof Timber Framing is essential ; and hence Curved self-support-ing Roofs for spans up to about 28 feet, are generally the cheapest whencost of Framing is added.…

Roofing · Sheet roofing · Corrugated roofing · Sheet metal · Structural iron · Ironwork
