Illustrated catalogue of galvanized iron roofing and shedding, iron structures, &c. : patent portable steel railways, railway plant, iron bridges, &c. (1884)

A. & J. Main & Co. · A. & J. Main & Co. · leaf 28

An illustration from Illustrated catalogue of galvanized iron roofing and shedding, iron structures, &c. : patent portable steel railways, railway plant, iron bridges, &c., 1884, leaf 28

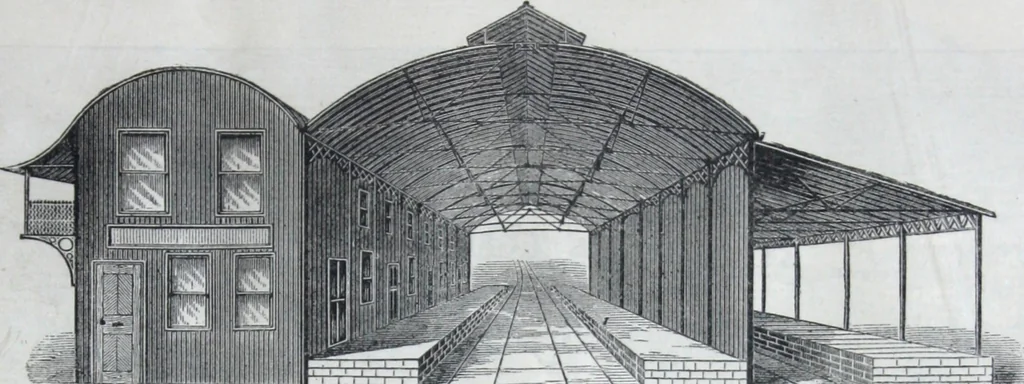

s style up to about 40 ft. or 50 ft. span;more ornamental character. according to the accommo-and the Roof is arched, to give it a somewhat As a Drill Hall the side wings are partitioned off for Orderly-rooms, Armoury, Stores, &c.Light Lfi admitted to the Centre Hall by glass in the roof, and… … No. 363. No. 363 illustrates the application of Galvanized Iron to Railway Stations, with Dwelling-houses for Station Master andAssistants. Underneath the Dwelling-houses are Booking Offices, Waiting Rooms, &c. If desired this portion can be built with Bookingand other Offices alone; and in…

Roofing · Sheet roofing · Corrugated roofing · Sheet metal · Structural iron · Ironwork
