Illustrated catalogue of galvanized iron roofing and shedding, iron structures, &c. : patent portable steel railways, railway plant, iron bridges, &c. (1884)
A. & J. Main & Co. · A. & J. Main & Co. · leaf 31

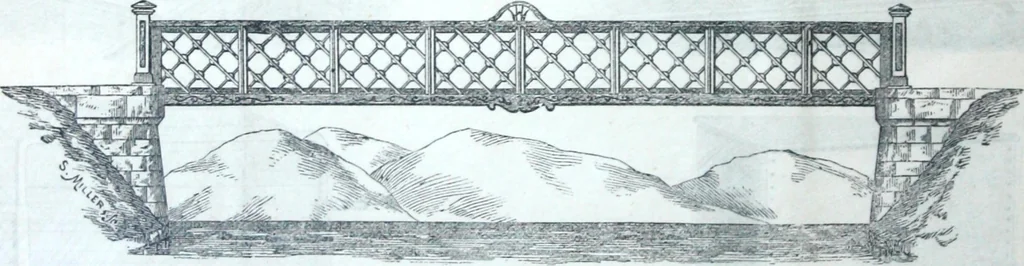

No. 418. The design No. 418 illustrates another form of a neat Lattice Girder Bridge, suitable for spans up to about 25 feet,well adapted for Private Policies or Public Parks, for Passengers or Carriages, where heavy traffic is not to be accommodated. It is … No. 306.No. 306.—This design represents the most ordinary form of the Lattice Girder Bridge, suitable either for Foot-Passenger orCarriage Traffic, and can be economically worked in spans up to 60 or 70 feet. The plain appearance of the Lattice can be relieved by Washers being placed at the…
Roofing · Sheet roofing · Corrugated roofing · Sheet metal · Structural iron · Ironwork
