Instructions for installing and operating the Thomson recording watt-meter. (1896)
General Electric Company · General Electric Company, Nela Park Engineering Department, · leaf 12

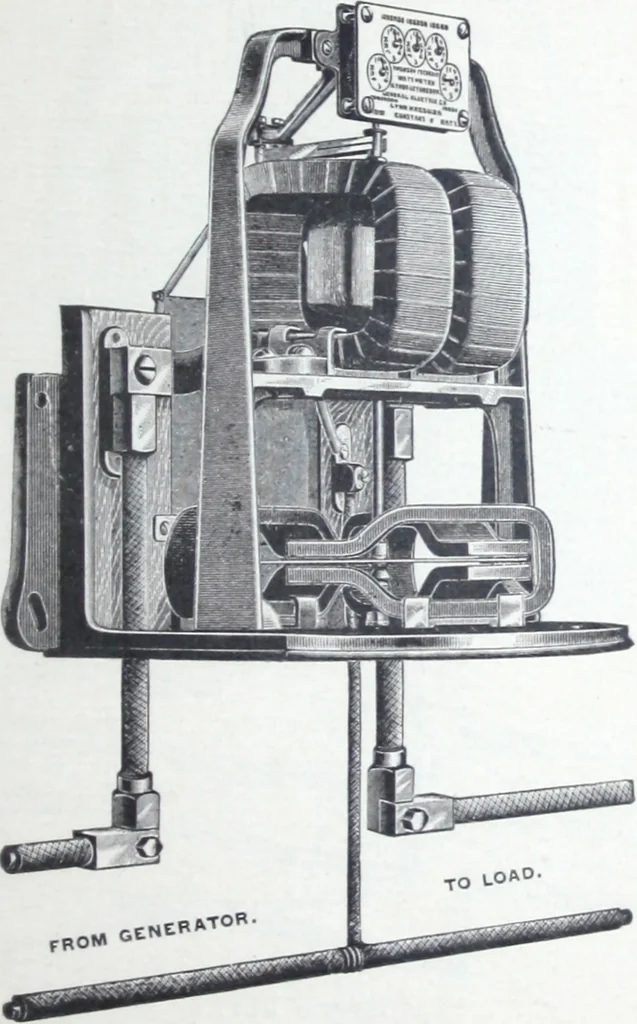

I ,.... I 18 … Figure If.Two-wire 3Ieter. fLiirj^e Caimcity). Connect the meter fields, l)y means of the two cables, in serieswith one side of the line. Connect the other side of the line by apotential wire to the small terminal inside the mater. 14
