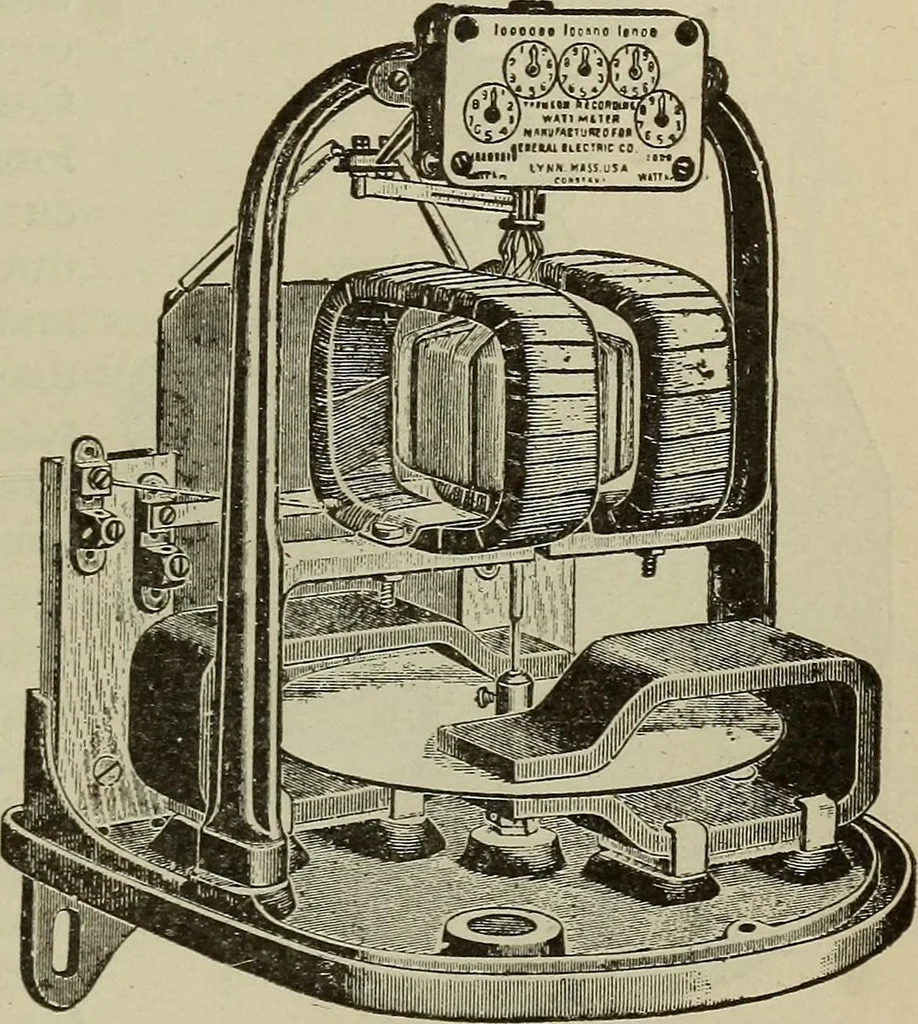

proportional to thepower in watts delivered to the circuit during that time. Themovable coil or armature revolves l:)etween two stationary coilswith its axis at right angles to the axes of these coils, as shownin Fig. 257, where the meter cover is removed. The mova-ble coil, Fig. 258, is a… … Fig. 257.—Thomson Recording Wattmeter with.Case Removed. 290 PRACTICAL ELECTRICITY. contacts or brushes, B. A worm, S, on the upper end of th^armature shaft engages a set of wheels which records the watt-hours on a dial. The armature is very light and delicatelypoised between jewel centres, so that…
