Instructions for installing and operating the Thomson recording watt-meter. (1896)
General Electric Company · General Electric Company, Nela Park Engineering Department, · leaf 13

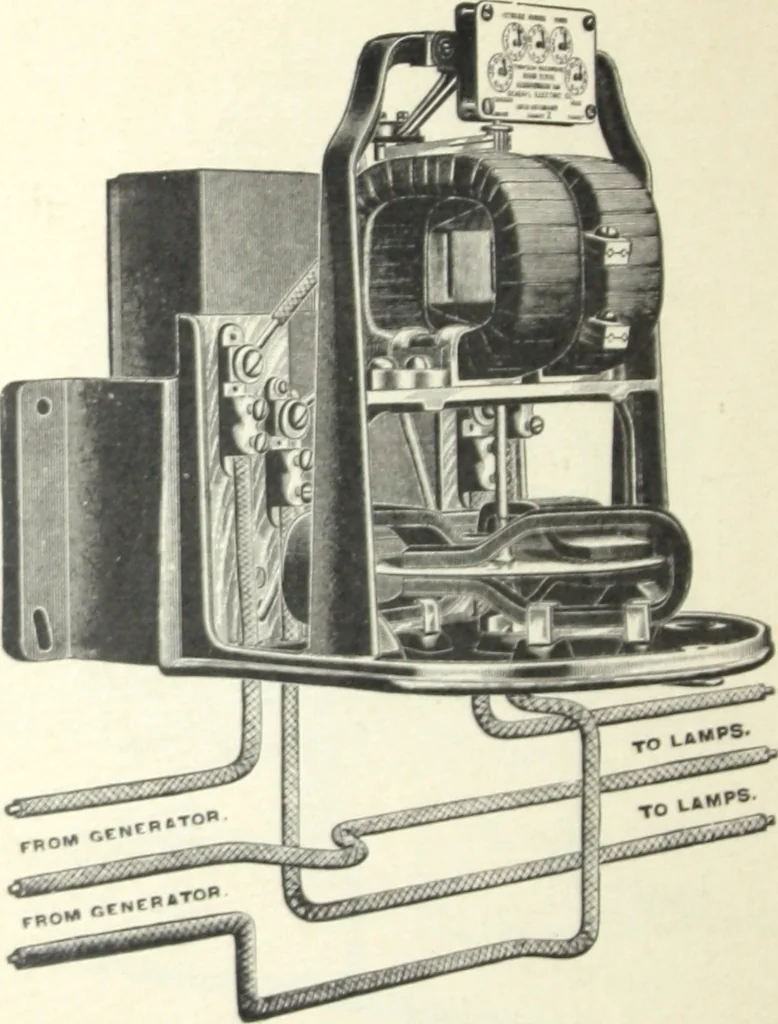

Figure If.Two-wire 3Ieter. fLiirj^e Caimcity). Connect the meter fields, l)y means of the two cables, in serieswith one side of the line. Connect the other side of the line by apotential wire to the small terminal inside the mater. 14 … I imni- III.Three-win* Metei ihe mains to the outsideronnecl the positive side to Conne* t the outside wires froiiterminals of the meter, being sure tothe terminal marked -♦-. Connect the outside wires from thelamps to inside terminals of the meter. Tlie neutral wire does notenter th* meter. 15
