Some Characteristics of Fuel Sprays from Open Nozzles (1930)
NASA Technical Reports Server (NTRS) · leaf 19

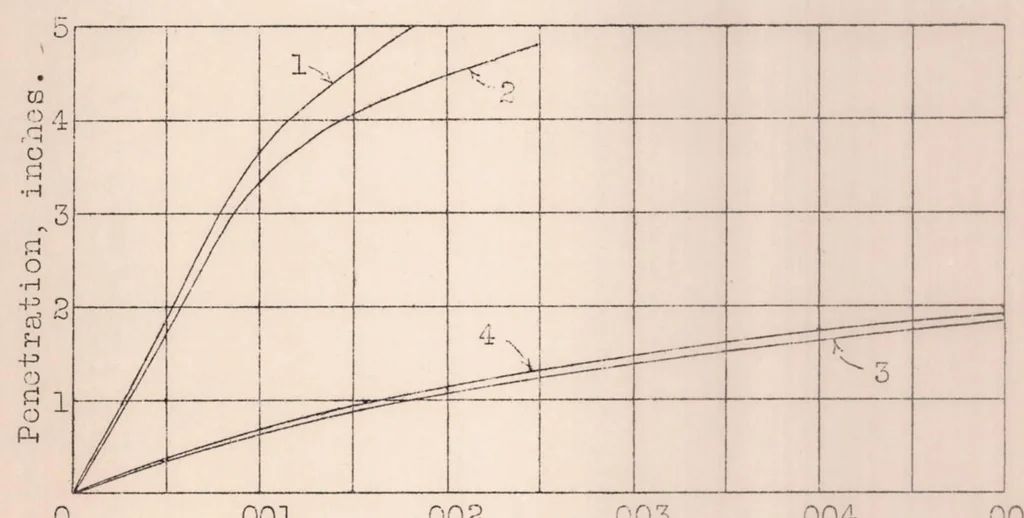

H.A.C.A. Technical Uote No. 356 Fig. 9 Injection pressure, 4000 lb./sq.i:a. Chamber air density, 1.10 lb./cu.ft. Orifice diameter, 0.020 inches. … 0 .001 .002 .003 .004 .005 Time j boo. ITo, 1-No check valvo in lino. Tube filled 'rxith fuol by hand pump between injections. I\To. 2-Check valve adjacent to timing valve and by-pass valve connection. Tube filled :rith fuel by hand pump between iiij octions. i!o. S-Ohock valve located ar> for lie.…NASA Technical Reports Server (NTRS)
