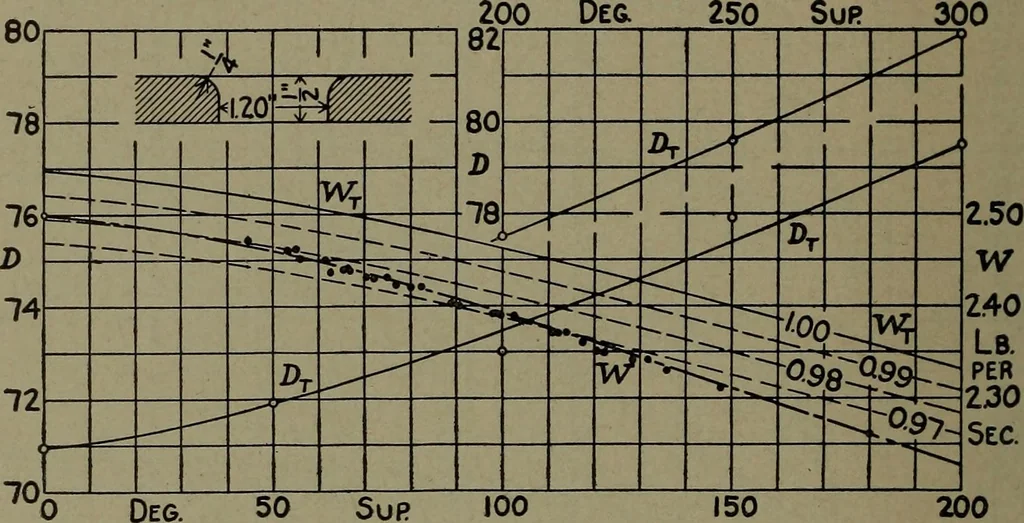

ts. The pressure was160 lb. abs. for the-series given, and efflux was into the atmosphere. 456 ACTION OF THE STEAM IN THE TURBINE. [Chap. IX. The diagram is plotted on degrees fahrenheit of superheat as base.The curve marked Z>t shows the calculated Napier divisor, worked outfor p0 = 0.58 pi, as… … Fig. 327. — Flow of Superheated Steam into Atmosphere, from 160 lb. abs., through1.2 in. orifice. Tests reported by I. Harter, Jr., Jour. A. S. M. E., Dec, 1910,Vol. 32, 2017-2021. are at 1, 2, and 3 per cent below the full unit value of this quantity. Ex-perimental flow results having been plotted…
