Penetration and Duration of Fuel Sprays from a Pump Injection System (1931)
NASA Technical Reports Server (NTRS) · leaf 19

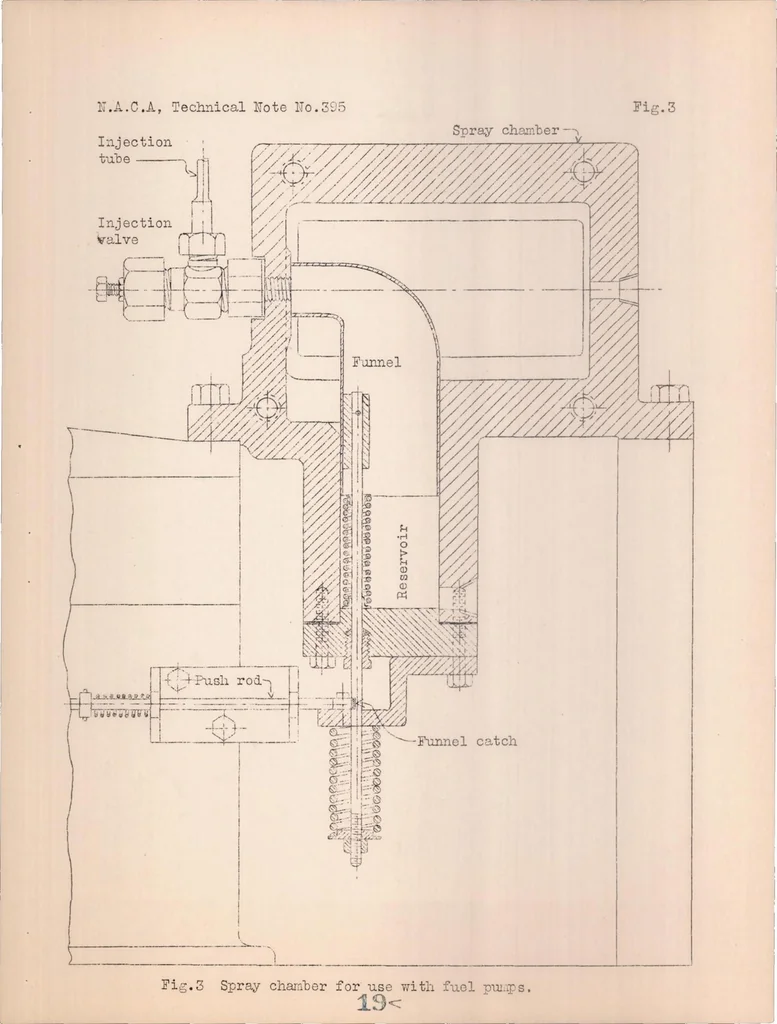

17.A.C.A, Technical Note M•395 Fig.3 Spray chamber Injection tube Fig.3 Spray chamber for use with fuel praips, 19<NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
