Some Characteristics of Fuel Sprays from Open Nozzles (1930)
NASA Technical Reports Server (NTRS) · leaf 16

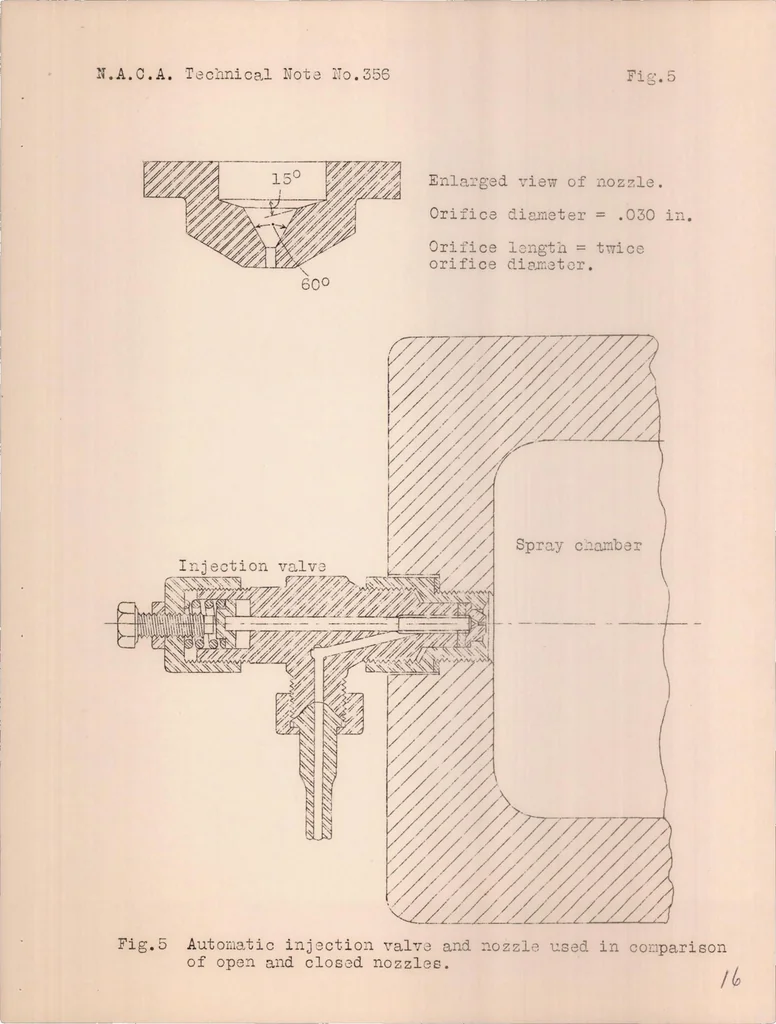

N.A.C.A. Technical Note No.356 Fig.5 Fig.5 Automatic injection valve and nozzle used in comparison of open and closed nozzles.NASA Technical Reports Server (NTRS)
