Development of an Impinging-jet Fuel-injection Valve Nozzle (1931)
NASA Technical Reports Server (NTRS) · leaf 15

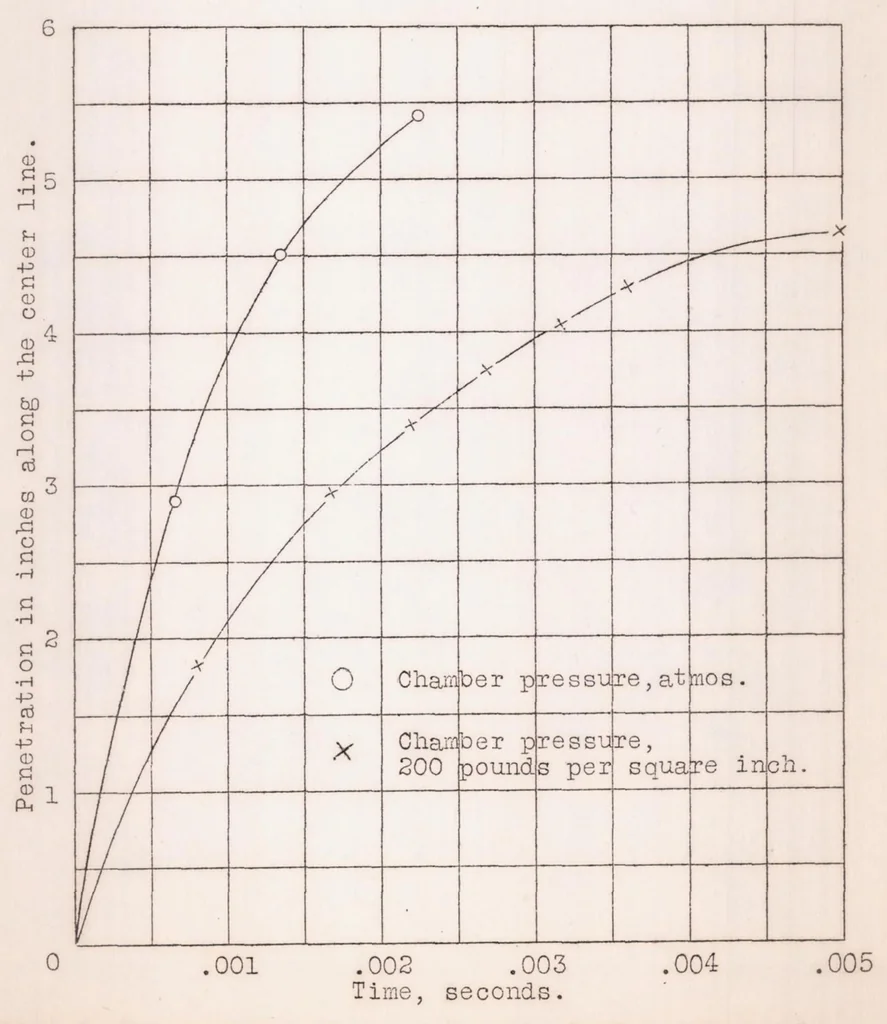

N.A.C.A. Technical Note No. 372 Fig. 7 … Fig. 7 Penetration of spray from impinging-jet nozzle. Orifice diameter 0.028".NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
