Drag Tests of 4/9-Scale Model Engine Nacelles with Various Cowlings (1932)
NASA Technical Reports Server (NTRS) · leaf 16

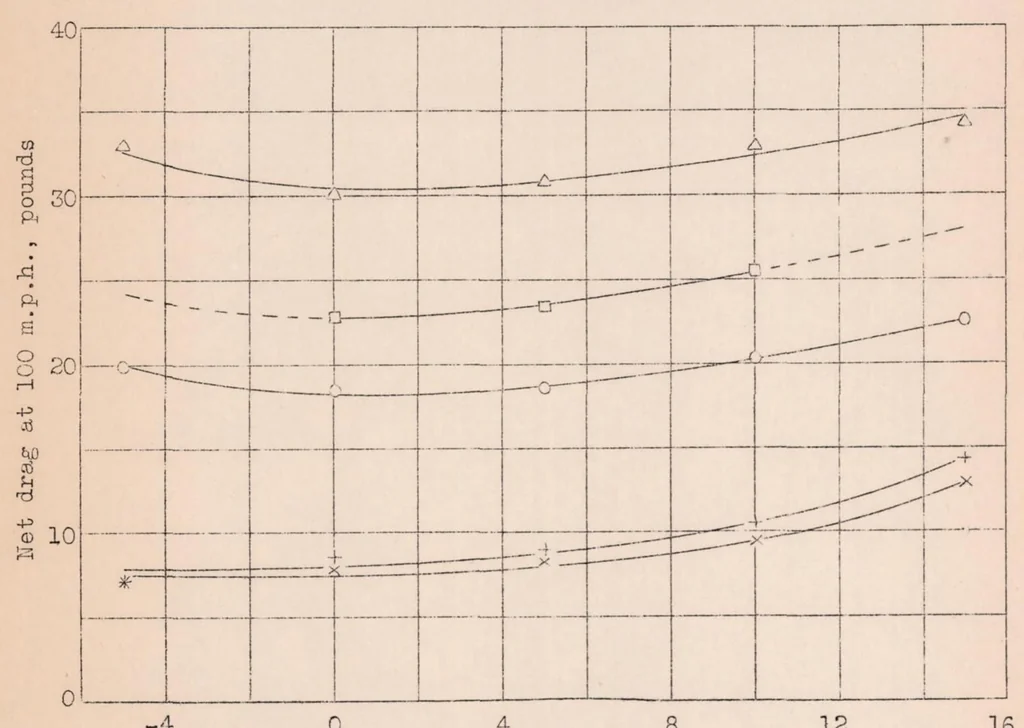

IT.A.C.A. Technical ITote Ho.432 Fig X II.A.C.A. nacelle 4 Smooth "body (;> Snail nacelle,v/ith IT.A.C.A. hood □ N.iV.C.A. nacelle,hood removed /\ Small nacelle, exposed cylinders … -4 0 4 8 12 Angle of pitch, degrees Fig.5 Change in drag with angle of pitch. (Various nacelles)NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
