Wind tunnel research comparing lateral control devices, particularly at high angles of attack X : various control devices on a wing with a fixed auxiliary airfoil (1933)

NASA Technical Reports Server (NTRS) · leaf 26

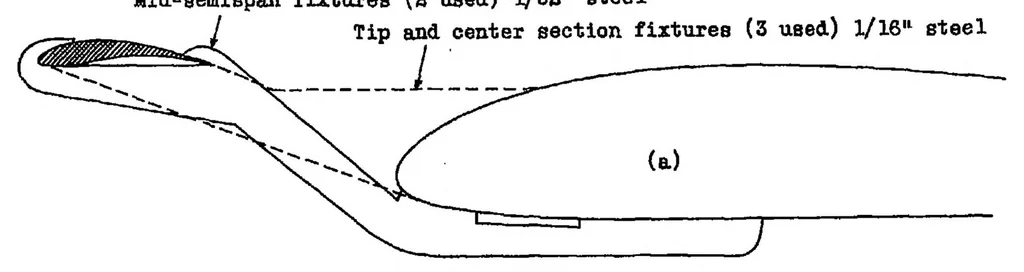

An illustration from Wind tunnel research comparing lateral control devices, particularly at high angles of attack X : various control devices on a wing with a fixed auxiliary airfoil, 1933, leaf 26 — Hid-semispan fixtures (3 used) 1/33" steel … Intermediate fixture looking quadrant (4 used) L „. J Intermediate fixtures (5 on 10" fe's.) 1/32" steel Figure 3- Auxiliary airfoil mounting fixtures, (a) fixed auxiliary, (b) movable auxiliary.
