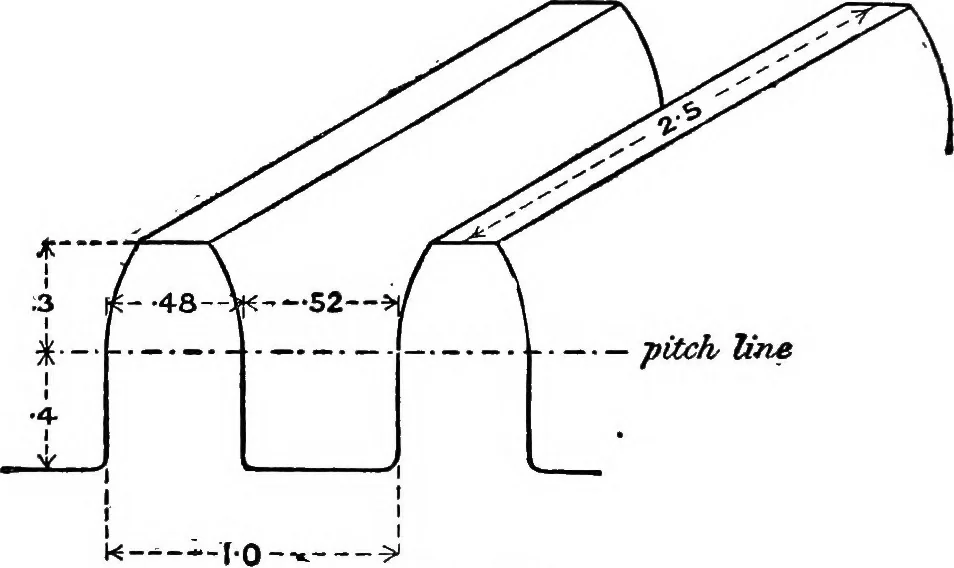

radius of the addendum circle of the follower, and ofrecess upon the radius of the addendum circle of the driver. Ifthe arc of contact is equal to the pitch, one pair of teeth arejust coming into gear when the preceding pair are just goingout. If the arc of action is twice the pitch, there are… … pitch line Fia. 299. is clearly equal to the length of the face aiCi minus the length ofthe working flan]j; axh; and during recess is equal to the lengthof the face a^^ minus the length of the working flank a^ Thetotal amount of sliding is, therefore, equal to the sum of the facesof the two teeth…
