Discharge characteristics of a double injection-valve single-pump injection system (1937)
NASA Technical Reports Server (NTRS) · leaf 12

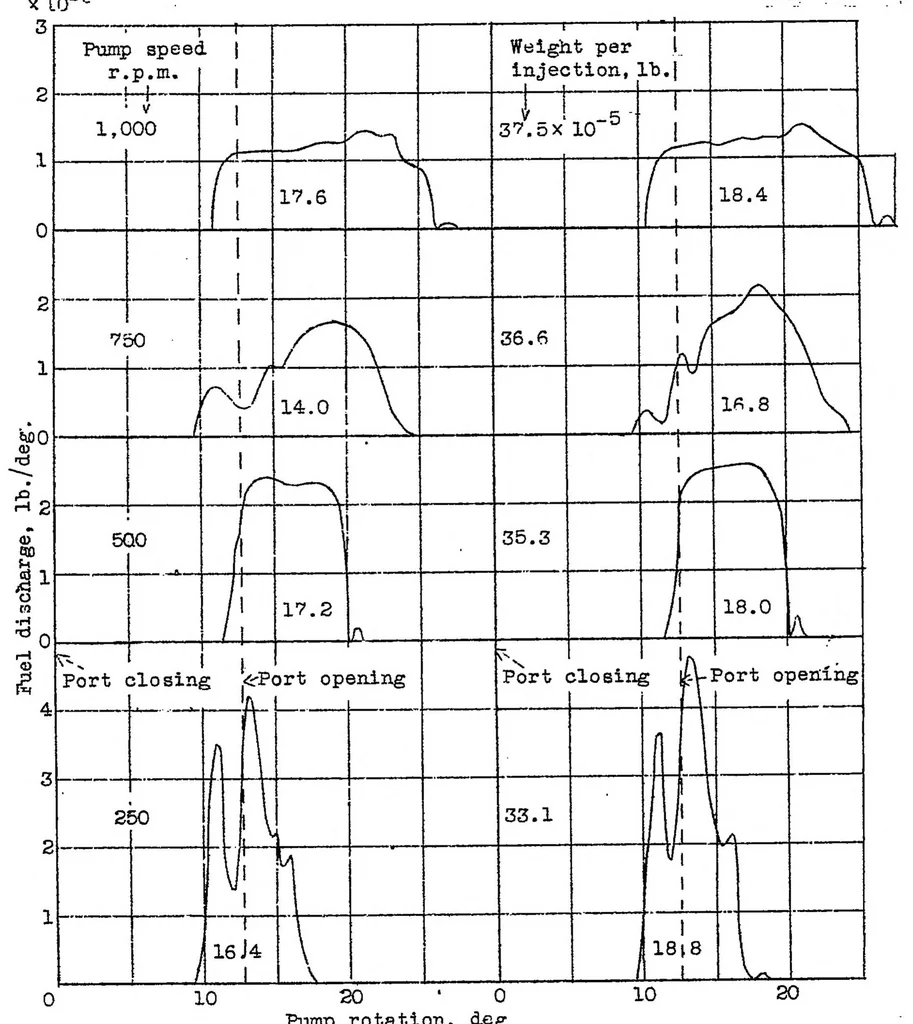

Fig. 2 N.A.C.A. Technical Note NO. 600 X10-5 … Pump rotation, deg Injection valve 2 Injection valve 1 Figure 2.- Effect ot pump speed on the discharge characteristics of a double-valve injection system. Valve-opening pressure, 3,000 rb./sq..in.; orifice diameter, 0.022 in.; throttle setting, 0.5; "branch tubes of equal lengths.NASA Technical Reports Server (NTRS)
