Effect of air-entry angle on performance of a 2-stroke-cycle compression-ignition engine (1937)
NASA Technical Reports Server (NTRS) · leaf 23

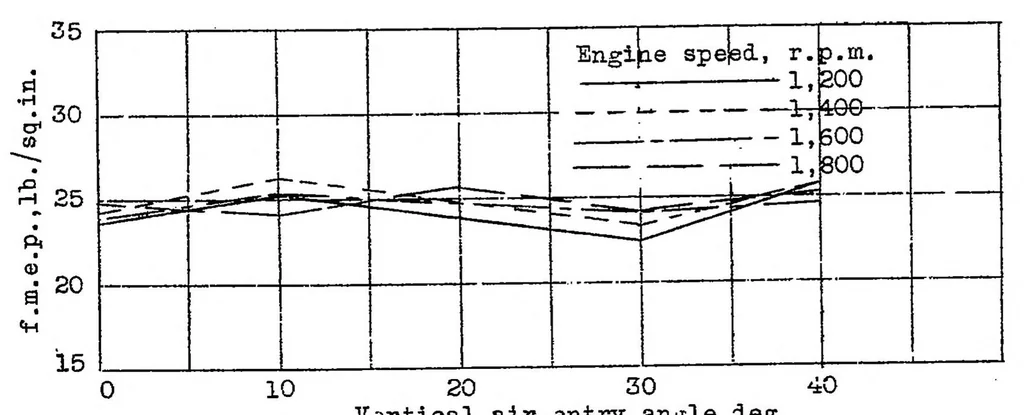

Fig.11 N.A.C.A. Technical Note So. 610 30 5 20 p- • 10 2-, 000 1,800 1,400 1,600 s 1,200 Engine speed, r.p.m. (a) Horizontal air-entry angle,60° 20 40 Horizontal air-entry angle,deg. lb) Engine speed, 1,800 r.p.m. Scavenging-air pressure, 15 in.Hg … Vertical air-entry angle,deg. (c) Horizontal air-entry angle,60° Scavenging-air pressure,15' in.Hg Figure 11.- Effect of various factors on the friction mean effective pressure.NASA Technical Reports Server (NTRS)
Internet Archive · NASA Technical Reports · Public domain (US government work). Free to use for anything.
