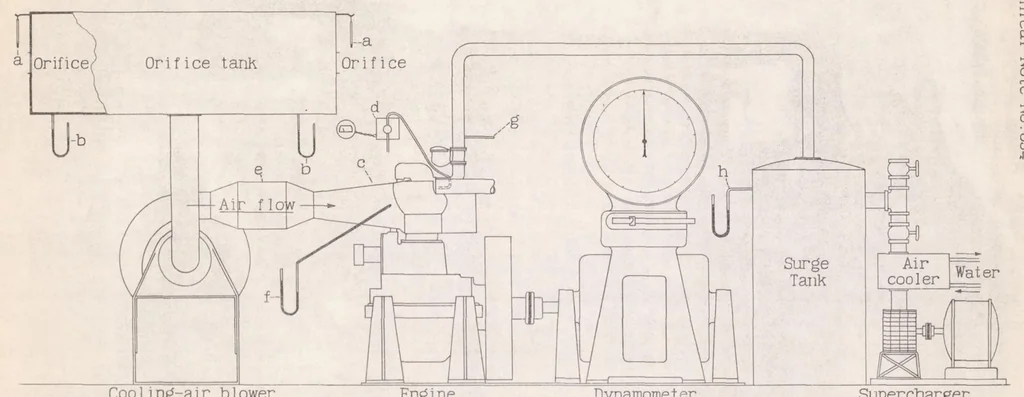

4 2 > H CD & … Cooling-air blower Engine Supercharger Dynamometer a. Thermometer f. Stat ic-pressure manometer d. Fuel-air-ratio indicator g. Carburetor-air thermometer o. Water manometer e. Two 30 kw electric air-heaters c. Cylinder-air jacket h. Manometer *—* • Figure 2.-Diagrammatic layout of equipment.
