Corrugated metal diaphragms for aircraft pressure-measuring instruments (1939)
NASA Technical Reports Server (NTRS) · leaf 41

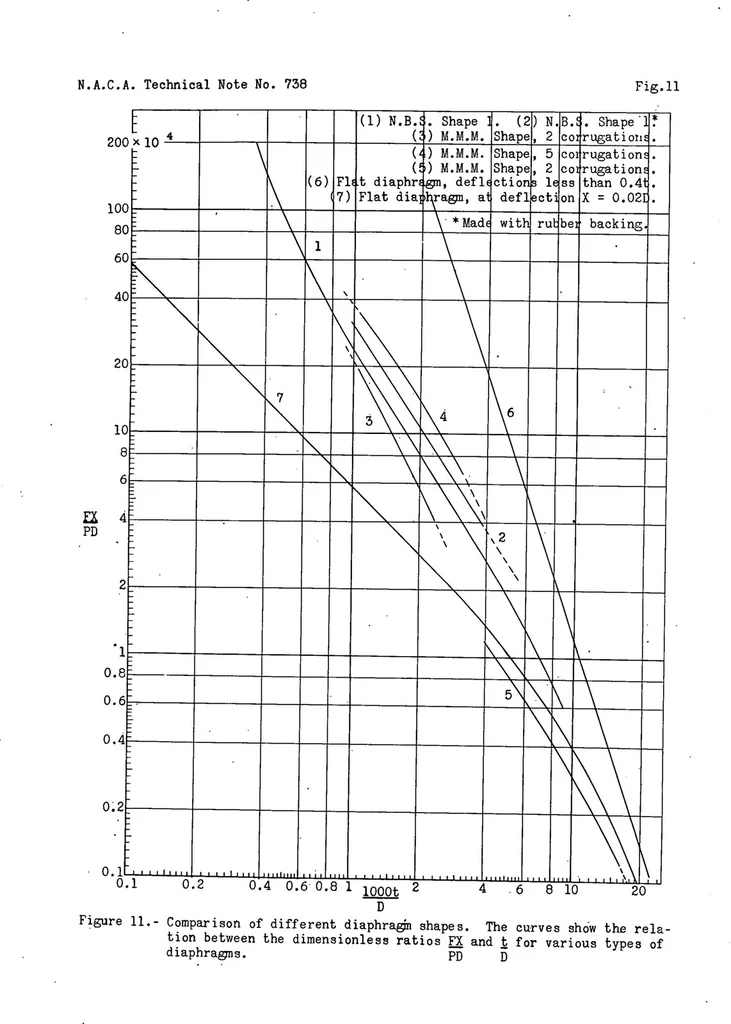

N.A.C.A. Technical Note No. 738 Fig.ll lOOOt Figure 11.- Comparison of different diaphragm shapes. The curves show the rela- tion between the dimensionless ratios FX and t for various types of diaphragms. pn 5
